Cornell Dubilier / Illinois CapacitorUnited States

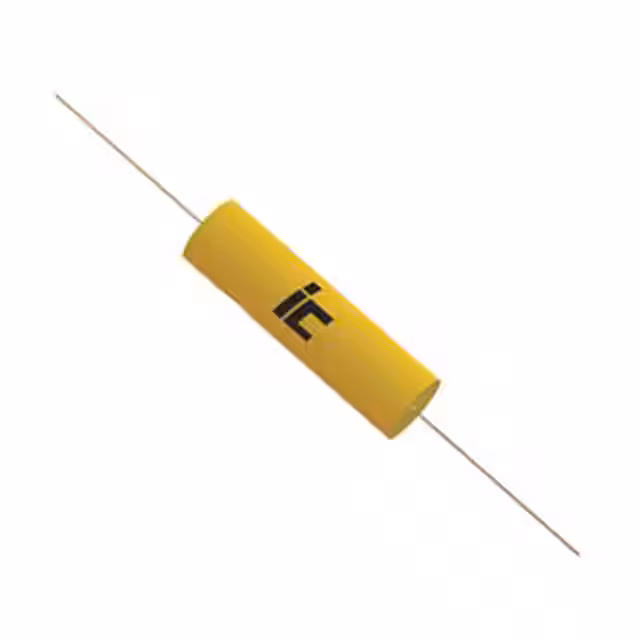

CAP FILM 0.068UF 10% 1KVDC AXIAL
All alternatives
View full reportTechnical parameters
Key specs
Capacitance68 nF
Rated voltage1 kV
Tolerance10 %
| Power | |
|---|---|
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 1000V (1kV) |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~105°C |
| Package | Bulk |
| Package / Case | Axial |
| Size / Dimension | 0.492" Dia x 1.142" L (12.50mm x 29.00mm) |
| Other | |
| Applications | General Purpose |
| Capacitance | 0.068 µF |
| Dielectric Material | Polyester, Metallized |
| Features | Low ESR |
| Lead Spacing | - |
| Mfr | Cornell Dubilier / Illinois Capacitor |
| Product Status | Active |
| Ratings | - |
| Series | MWR |
| Termination | PC Pins |
| Tolerance | ±10% |
