Wakefield-VetteUnited States

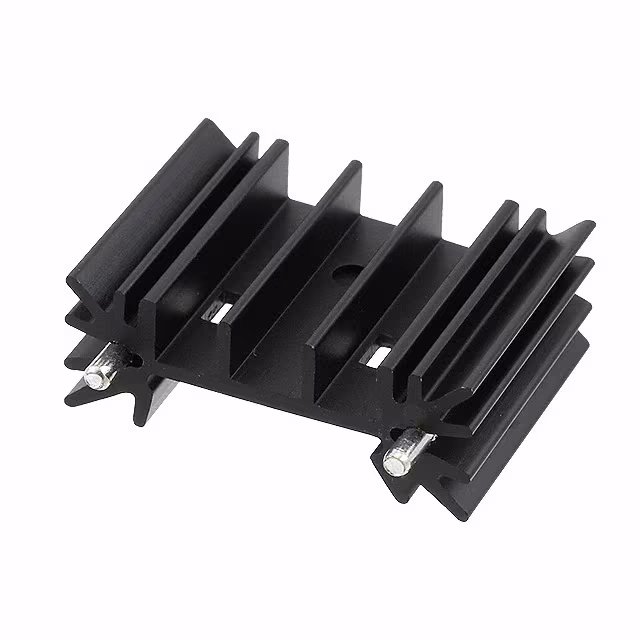

HEATSINK TO-220 W/PINS
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Fin Height | 1.000" (25.40mm) |
| Package | Bulk |
| Package Cooled | TO-220 |
| Power Dissipation @ Temperature Rise | 6.0W@76°C |
| Thermal Resistance @ Forced Air Flow | 5.80°C/W @ 200 LFM |
| Thermal Resistance @ Natural | - |
| Other | |
| Attachment Method | Bolt On and PC Pin |
| Base Product Number | 667-10 |
| Diameter | - |
| Length | 0.500" (12.70mm) |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Mfr | Wakefield-Vette |
| Product Status | Active |
| Series | 667 |
| Shape | Rectangular, Fins |
| Type | Board Level, Vertical |
| Width | 1.375" (34.93mm) |
