Laird Thermal Systems, Inc.United States

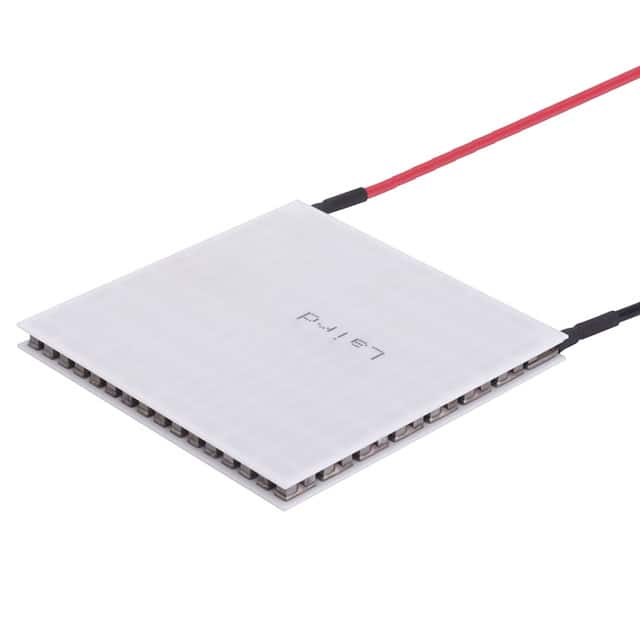

PELTIER MOD CP2,127,06,L1,W4.5
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 14.3 A |
| Voltage - Max | 14.5 V |
| Environment and package | |
| Height | 4.57mm |
| Operating Temperature | 80°C |
| Package | Bulk |
| Size / Dimension | Square - 62.00mm L x 62.00mm W |
| Other | |
| Base Product Number | 66100 |
| Delta Tmax @ Th | 67°C @ 25°C |
| Features | Lead Wires, Non-Sealed |
| Mfr | Laird Thermal Systems, Inc. |
| Number of Stages | 1 |
| Product Status | Active |
| Qmax @ Th | 122.3W @ 25°C |
| Resistance | 940 mOhms |
| Series | CP |
