TE ConnectivitySwitzerland

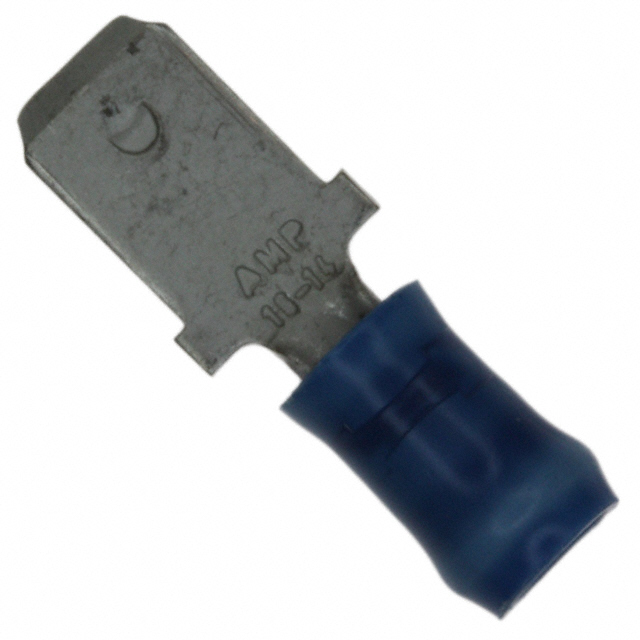

CONN QC TAB 14-16AWG 0.250 CRIMP
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Bulk |
| Other | |
| Base Product Number | 66024 |
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | - |
| Gender | Male |
| Insulation | Non-Mating End Insulated |
| Insulation Diameter | 0.115" ~ 0.170" (2.92mm ~ 4.32mm) |
| Length - Overall | 0.991" (25.17mm) |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Active |
| Series | PIDG |
| Tab Length | - |
| Tab Thickness | 0.032" (0.81mm) |
| Tab Width | 0.250" (6.35mm) |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge | 14-16 AWG |
