Wakefield-VetteUnited States
HEATSINK CPU 28MM SQ BLK W/TAPE
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|

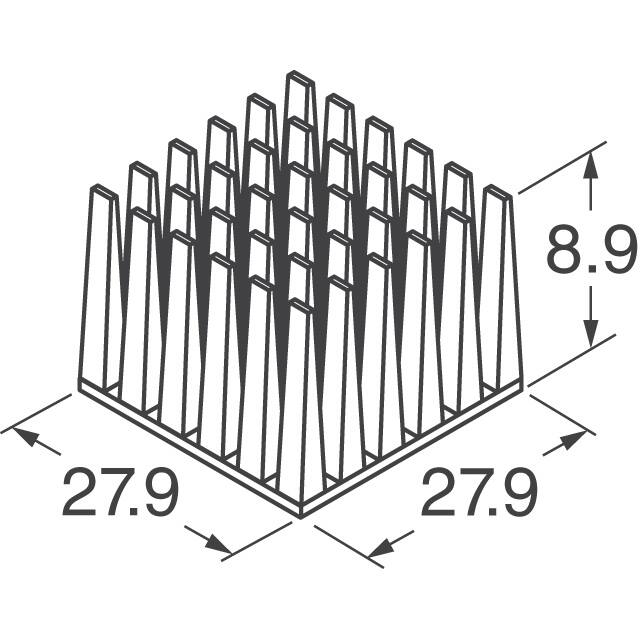

| Fin Height | 0.350" (8.89mm) |
| Package Cooled | BGA |
| Power Dissipation @ Temperature Rise | - |
| Thermal Resistance @ Forced Air Flow | 3.00°C/W @ 800 LFM |
| Thermal Resistance @ Natural | - |
| Other | |
| Attachment Method | Thermal Tape, Adhesive (Included) |
| Diameter | - |
| Length | 1.100" (27.94mm) |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Mfr | Wakefield-Vette |
| Product Status | Obsolete |
| Series | 658 |
| Shape | Square, Pin Fins |
| Shelf Life | - |
| Type | Top Mount |
| Width | 1.100" (27.94mm) |
Documents
No documents are linked to this part yet.
