65605CY

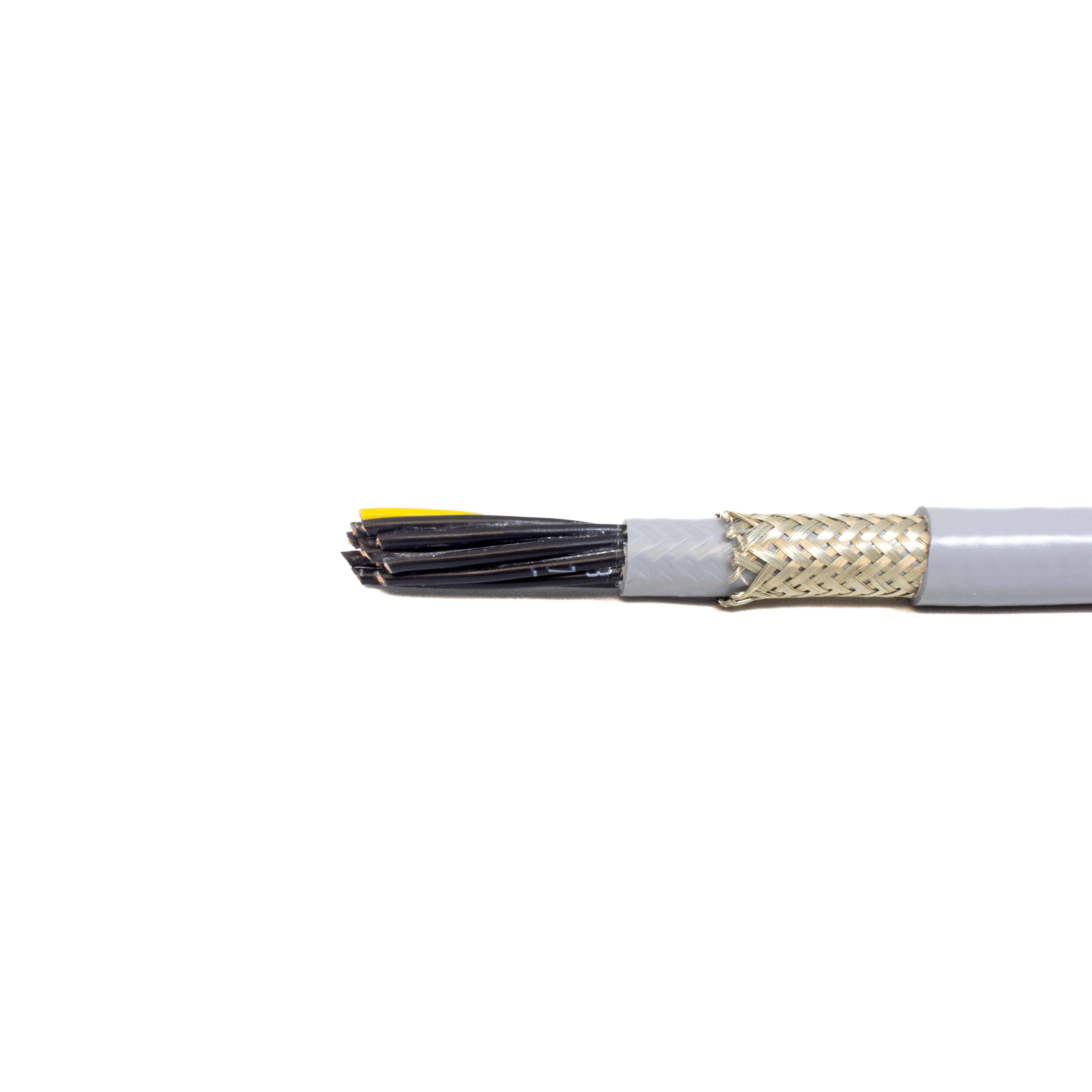

ActiveXtra-Guard Flex 16 AWG 5 Conductor is a long-lasting flexible cable designed to provide excellent performance in high-flex, high torsion, and continuous-flex applications
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 600 V RMS |
| Environment and package | |
| 1) Temperature Range | -40 to 90°C(static), -5 to 90°C (dynamic) |
| Other | |
| (1) Color(s) | SLATE |
| 1) Component 1 | 1 X 5 COND |
| (1) Print | ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING AND INVERTED |
| (1) Twists | 3.7 Twists/foot (min) |
| 1) UL | 2) CSA International |
| 2) Bend Radius | 5X Cable Diameter(static), 5X Cable Diameter(dynamic) |
| 2) Capacitance | 44 pF/ft @1 kHz, Nominal Conductor to Conductor |
| (2) Jacket Separator | Tissue Tape, 20% Overlap, Min. |
| (2) Orientation | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| 2) Shield | Tinned Copper BRAID Shield,85% Coverage, Nom. |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 3) CE | EU Low Voltage Directive 2014/35/EU |
| 3) Ground Capacitance | 79 pF/ft @1 kHz, Nominal |
| 3) Pull Tension | 111 Lbs, Maximum |
| 4) Inductance | 0.18 μH/ft, Nominal |
| 5) Conductor DCR | 4.1 Ω/1000ft @20°C, Nominal |
| 6) OA Shield DCR | 2.5 Ω/1000ft @20°C, Nominal |
| 90°C / 600 V RMS | 90°C / 600 V RMS |
| a) 1000 FT | 24 x 14 x 12 Continuous length |
| a) Color(s) | SLATE |
| AWM/STYLE 2587 | C(RU) AWM I/II A/B |
| b) 500 FT | 18 x 9 x 8 Continuous length |
| b) Jacket Separator | Tissue Tape, 20% Overlap, Min. |
| c) 100 FT | 12 x 5.94 x 5 Continuous length |
| c) Cabling | 5 COND Cabled |
| Color | BLACK #1 |
| Cond | 1 |
| c) Print | ALPHA WIRE-* P/N 65605CY 5C 16 AWG XTRAGUARD(R) FLEXIBLE CONTROL CABLE RU AWM 2587 CLASS K OR CRU AWM I/II A/B FT1 90C 600V CE ROHS (SEQ FOOTAGE) * = Factory Code |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
