Alpha WireUnited States

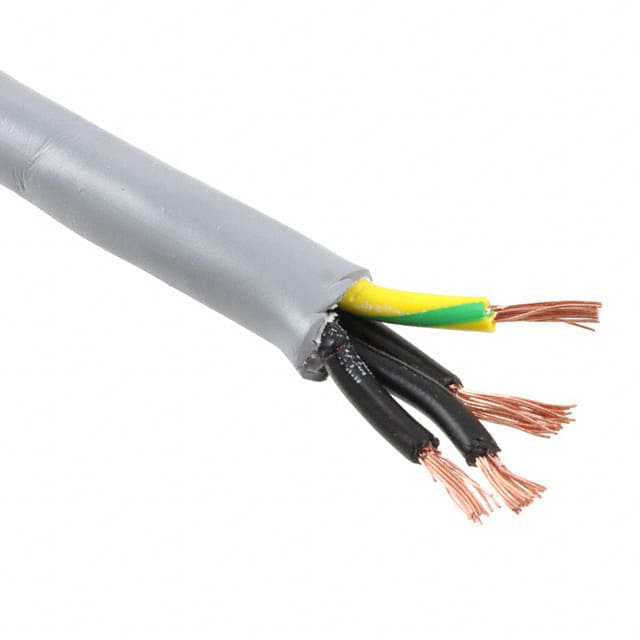

CABLE 4COND 16AWG SHLD 1000'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 600 V |
| Environment and package | |
| Operating Temperature | - |
| Package | Spool |
| Other | |
| Base Product Number | 65604CY |
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand | 26/30 |
| Features | Biological Compatibility |
| Jacket Color | Slate |
| Jacket (Insulation) Diameter | 0.416" (10.57mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.0350" (0.889mm) |
| Length | 1000.0' (304.8m) |
| Mfr | Alpha Wire |
| Number of Conductors | 4 |
| Product Status | Active |
| Ratings | ISO 10993, UL Style 2587 |
| Series | Xtra-Guard® Flex |
| Shield Coverage | 85% |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Usage | - |
| Wire Gauge | 16 AWG |
