Würth ElektronikGermany

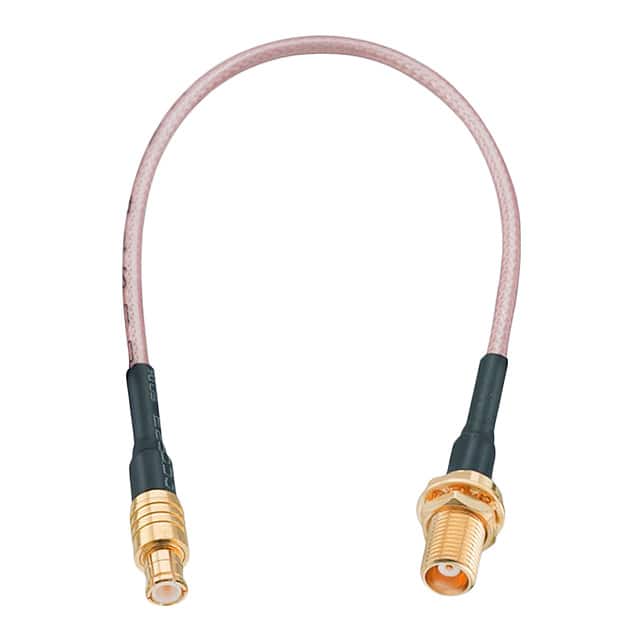

MCX STRAIGHT PLUG TO MCX BULKHEA
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Cable Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Overall Impedance | 50 Ohms |
| Environment and package | |
| 1st Connector Mounting Feature | - |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| Operating Temperature | -55°C~155°C |
| Package | Bag |
| Other | |
| 1st Connector | MCX Plug |
| 1st Contact Gender | Male |
| 2nd Connector | MCX Socket |
| 2nd Contact Gender | Female |
| Cable Type | RG-178 |
| Color | Copper |
| Features | Shielded |
| Ingress Protection | - |
| Length | 6.000" (152.40mm) |
| Mfr | Würth Elektronik |
| Product Status | Active |
| Series | WR-CXASY |
| Style | MCX to MCX |
