TE ConnectivitySwitzerland

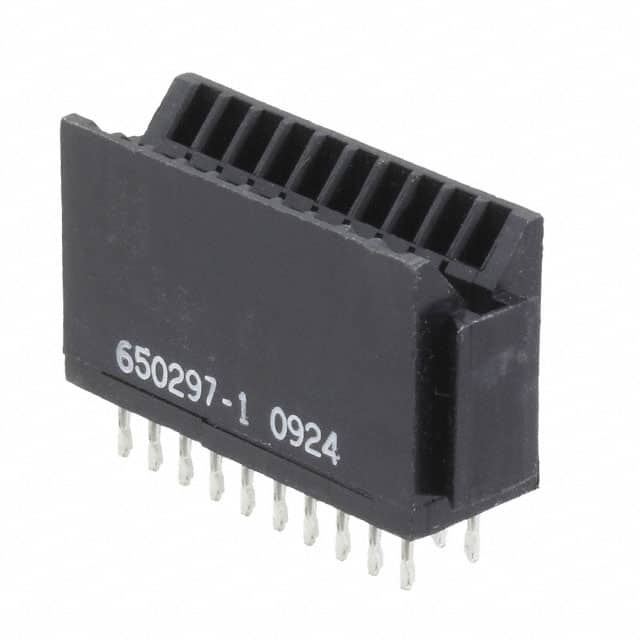

CONN EDGE DUAL FMALE 20POS 0.100
All alternatives
View full reportTechnical parameters
Key specs
Positions20
Rows2
Pitch2.54 mm
GenderFemale
| Environment and package | |
|---|---|
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Tray |
| Other | |
| Base Product Number | 650297 |
| Card Thickness | 0.054" ~ 0.071" (1.37mm ~ 1.80mm) |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Material | Phosphor Bronze |
| Contact Type | - |
| Features | - |
| Flange Feature | - |
| Gender | Female |
| Material - Insulation | Polyester, Glass Filled |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 20 |
| Number of Positions/Bay/Row | - |
| Number of Rows | 2 |
| Pitch | 0.100" (2.54mm) |
| Product Status | Obsolete |
| Read Out | Dual |
| Series | AMP PACE |
| Termination | Press-Fit |
