Alpha WireUnited States

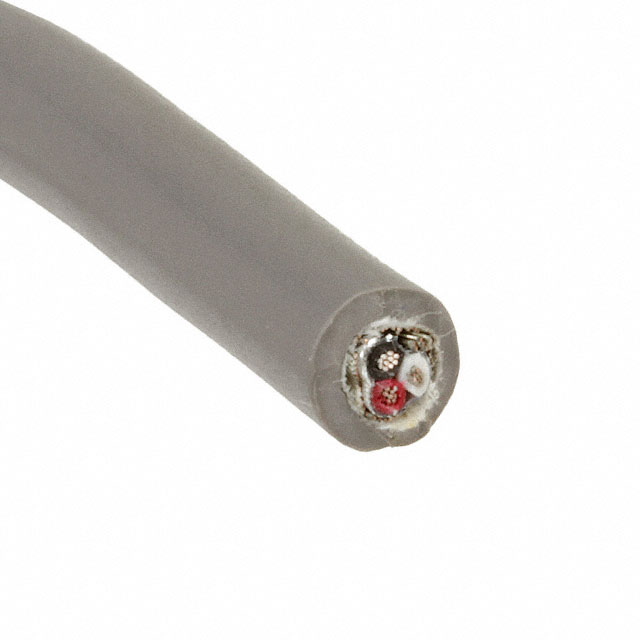

CABLE 3COND 24AWG SHLD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 300 V |
| Environment and package | |
| Operating Temperature | -20°C ~ 80°C |
| Package | Spool |
| Other | |
| Base Product Number | 6351 |
| Cable Type | Multi-Conductor |
| Conductor Insulation | Foam Polyethylene (FPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 7/32 |
| Features | Drain Wire |
| Jacket Color | Slate |
| Jacket (Insulation) Diameter | 0.217" (5.51mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.0350" (0.889mm) |
| Length | 1000.0' (304.8m) |
| Mfr | Alpha Wire |
| Number of Conductors | 3 |
| Product Status | Active |
| Ratings | UL Style 2919 |
| Series | - |
| Shield Coverage | 100%, 65% |
| Shield Material | Aluminum; Copper, Tinned |
| Shield Type | Foil, Braid |
| Usage | - |
| Wire Gauge | 24 AWG |
