6328

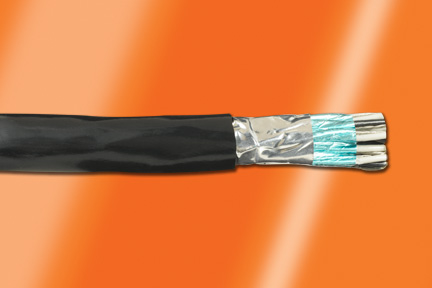

ActiveAlpha Wire 24 AWG, 4 Conductor Communication Cable provides precise signal transmission for computer and control applications
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 300 V RMS |
| Environment and package | |
| 1) Temperature Range | -20 to 80°C |
| Other | |
| 1) Component 1 | 4 x 1 COND |
| 2) Bend Radius | 10X Cable Diameter |
| 2) Cable Assembly | 4 Components Cabled |
| 2) Capacitance | 31 pF/ft @1 kHz, Nominal Conductor-to-Conductor |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more detail. |
| 3) CE | EU Low Voltage Directive 2014/35/EU |
| 3) Ground Capacitance | 56 pF/ft @1 kHz, Nominal |
| 3) Pull Tension | 19.6 lbs. (max.) |
| 3) Shield | Alum/Mylar Tape, 25% Overlap (min.) |
| 4) Inductance | 0.19 μH/ft, Nominal |
| 5) Conductor DCR | 26 Ω/1000ft @20°C, Nominal |
| 6) OA Shield DCR | 7.2 Ω/1000ft @20°C, Nominal |
| 80°C / 300 V RMS | 75°C |
| a) 1000 FT | 12 x 10.5 x 5 Continuous Length |
| a) Color(s) | SLATE |
| a) Foil Direction | Foil Facing Out |
| a) Twists | 8.0 Twists/foot (min.) |
| AWM/STYLE 2464 | CM |
| b) 500 FT | 10.5 x 5 x 3.5 Continuous Length |
| b) Drain Wire | 24 (7/32) AWG Tinned Copper |
| b) Orientation | Components to be arranged from INSIDE LAYER-to-OUTSIDE LAYER |
| b) Print | ALPHA WIRE-* P/N 6328 4C 24 AWG SHIELDED 75C (UL) TYPE CM OR AWM 2464 OR C(UL) 60C TYPE CMG FT4 CE ROHS * = Factory Code Note: Product may have c(UL) or CSA markings depending upon plant of manufacture. |
| c) 100 FT | 6.5 x 4 x 2.5 Continuous Length |
| c) Braid | Tinned Copper,65% Coverage, Nom. |
| CM | 75°C |
| Color | BLACK |
| Cond | 1 |
| Electrical Properties | For Engineering purposes only |
| Packaging | Flange x Traverse x Barrel (inches) |
