ebm-papst Inc.Germany

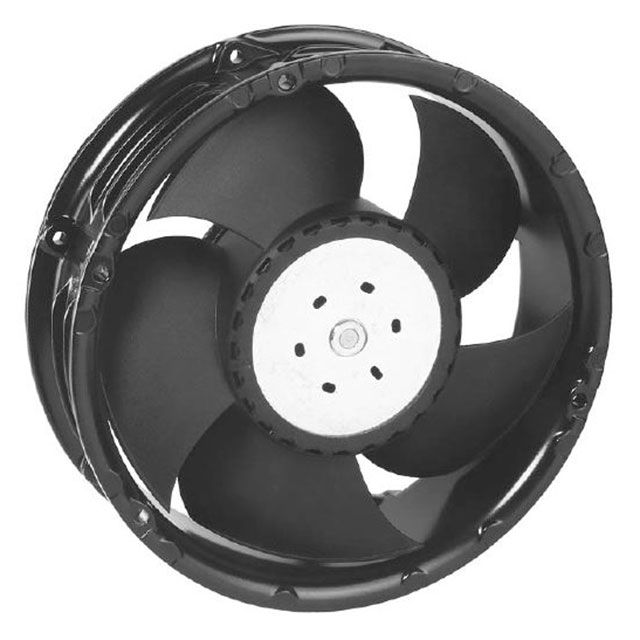

FAN AXIAL 172X50.8MM 12VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 41 W |
| Voltage Range | 8 ~ 16VDC |
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Noise | 64.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Package | Bulk |
| Size / Dimension | Round - 172mm Dia |
| Other | |
| Air Flow | 353.0 CFM (9.88m³/min) |
| Approval Agency | - |
| Base Product Number | 6312 |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | PWM Control, Speed Sensor (Tach) |
| Ingress Protection | - |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Aluminum |
| Mfr | ebm-papst Inc. |
| Product Status | Active |
| RPM | 6000 RPM |
| Series | 6300TD |
| Static Pressure | - |
| Termination | 4 Wire Leads |
| Weight | 2 lbs (907.2 g) |
| Width | 50.80mm |
