TE ConnectivitySwitzerland

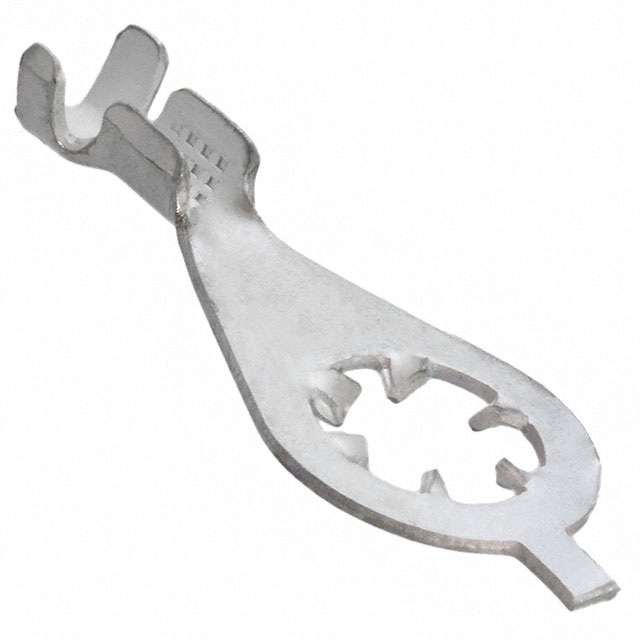

CONN RING CIRC 15-20AWG CRIMP
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Stud/Tab Size | - |
| Other | |
| Base Product Number | 626416 |
| Color | - |
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | - |
| Insulation | Non-Insulated |
| Insulation Diameter | 0.070" ~ 0.120" (1.78mm ~ 3.05mm) |
| Length - Overall | 1.016" (25.80mm) |
| Material - Insulation | - |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Active |
| Series | - |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.024" (0.61mm) |
| Width - Outer Edges | - |
| Wire Gauge | 15-20 AWG |
