TE ConnectivitySwitzerland

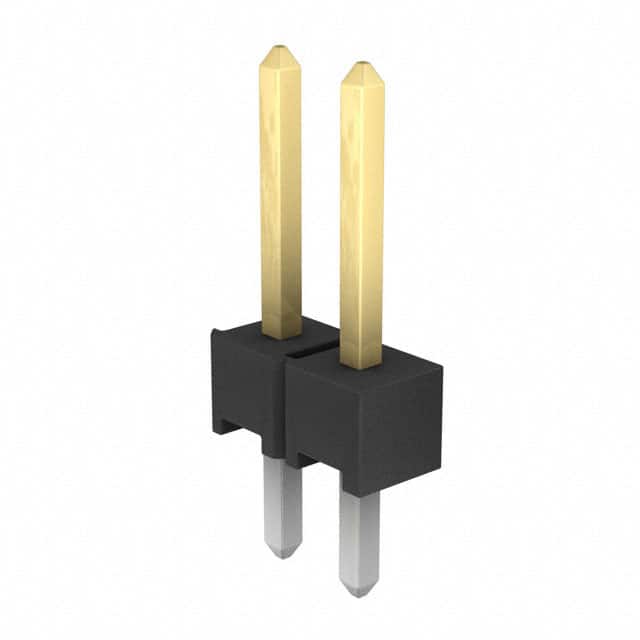

CONN HEADER VERT 2POS 2.54MM
All alternatives
View full reportTechnical parameters
Key specs
Positions2
Rows1
Pitch2.54 mm
GenderMale
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Environment and package | |
| Insulation Height | - |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Applications | - |
| Base Product Number | 626249 |
| Connector Type | Header, Breakaway |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | - |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish Thickness - Post | - |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | - |
| Contact Material | - |
| Contact Shape | - |
| Contact Type | Male Pin |
| Fastening Type | - |
| Features | - |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | - |
| Material Flammability Rating | - |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Overall Contact Length | - |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Row Spacing - Mating | - |
| Series | AMPMODU Mod II |
| Shrouding | Unshrouded |
| Style | Board to Board or Cable |
| Termination | Solder |
Documents
No documents are linked to this part yet.
