TE ConnectivitySwitzerland

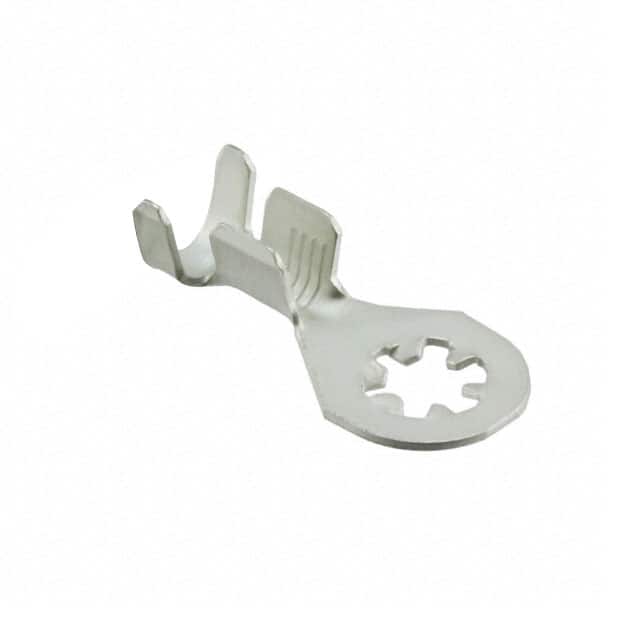

CONN RING CIRC 10-12AWG #8 CRIMP
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Tape & Reel (TR) |
| Stud/Tab Size | 8 Stud |
| Other | |
| Base Product Number | 62612 |
| Color | - |
| Contact Finish | - |
| Contact Material | Steel |
| Features | Inner Teeth, Serrated Termination |
| Insulation | Non-Insulated |
| Insulation Diameter | 0.125" ~ 0.220" (3.18mm ~ 5.59mm) |
| Length - Overall | 0.990" (25.15mm) |
| Material - Insulation | - |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Active |
| Series | - |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.024" (0.61mm) |
| Width - Outer Edges | 0.470" (11.94mm) |
| Wire Gauge | 10-12 AWG |
Documents
No documents are linked to this part yet.
