ebm-papst Inc.Germany

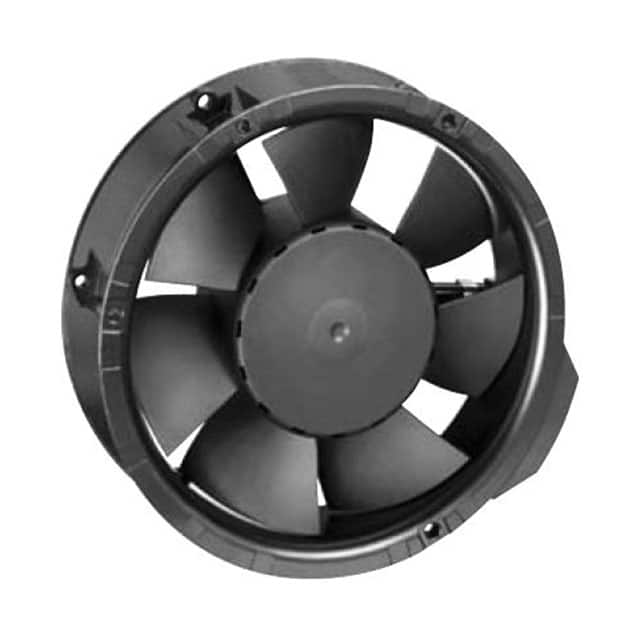

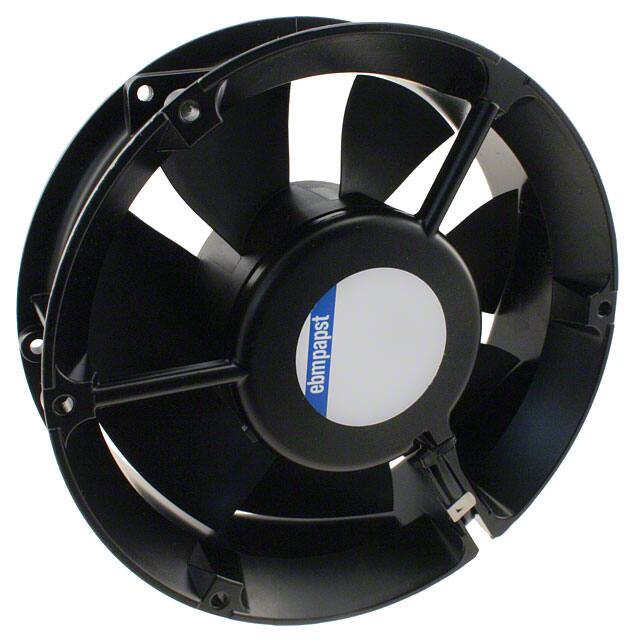

FAN AXL 171.5X50.8MM 48VDC TERM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 17 W |
| Voltage Range | 28 ~ 60VDC |
| Voltage - Rated | 48VDC |
| AC and DC characteristics | |
| Noise | 55.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 77500 Hrs @ 40°C |
| Operating Temperature | 14~162°F(-10~72°C) |
| Package | Box |
| Size / Dimension | Round - 171.5mm Dia |
| Other | |
| Air Flow | 241.3 CFM (6.76m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Temperature Dependent Speed Control |
| Ingress Protection | - |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Metal |
| Mfr | ebm-papst Inc. |
| Product Status | Obsolete |
| RPM | 3400 RPM |
| Series | 6200N |
| Static Pressure | - |
| Termination | 2 Terminals |
| Weight | 1.8 lbs (816.5 g) |
| Width | 50.80mm |
