ebm-papst Inc.Germany

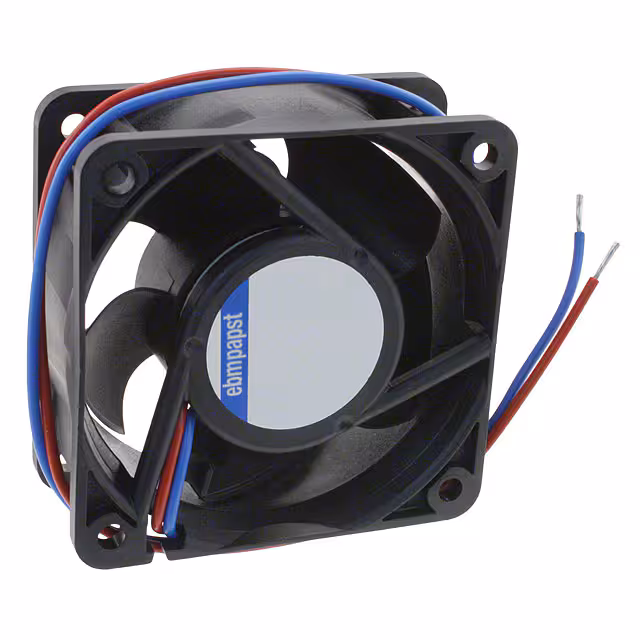

FAN AXIAL 60X25.4MM 12VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 1.9 W |
| Voltage Range | 8 ~ 15VDC |
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Noise | 35.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 72500 Hrs @ 40°C |
| Operating Temperature | -4~158°F(-20~70°C) |
| Package | Bulk |
| Size / Dimension | Square - 60mm L x 60mm H |
| Other | |
| Air Flow | 23.5 CFM (0.658m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Mfr | ebm-papst Inc. |
| Product Status | Active |
| RPM | 6100 RPM |
| Series | 620 |
| Static Pressure | - |
| Termination | 2 Wire Leads |
| Weight | 0.187 lb (84.82 g) |
| Width | 25.40mm |
