ebm-papst Inc.Germany

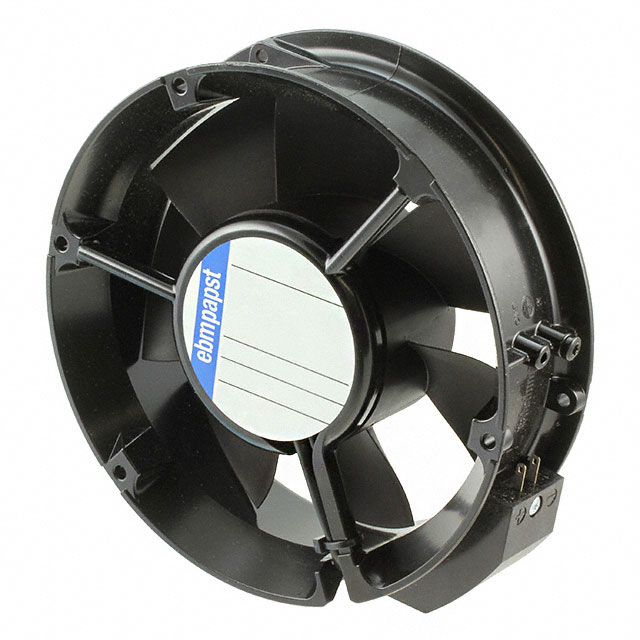

FAN AXIAL 171.5X50.8MM 24VDC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 15.6 W |
| Voltage Range | 12 ~ 28VDC |
| Voltage - Rated | 24VDC |
| AC and DC characteristics | |
| Noise | 55.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | - |
| Operating Temperature | -4 ~ 162°F (-20 ~ 72°C) |
| Package | Bulk |
| Size / Dimension | Round - 171.5mm Dia |
| Other | |
| Air Flow | 241.3 CFM (6.76m³/min) |
| Approval Agency | UL |
| Base Product Number | 6224N |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Aluminum |
| Mfr | ebm-papst Inc. |
| Product Status | Active |
| RPM | 3400 RPM |
| Series | 6200NU |
| Static Pressure | - |
| Termination | 2 Wire Leads |
| Weight | 1.9 lbs (861.8 g) |
| Width | 50.80mm |
