ebm-papst Inc.Germany

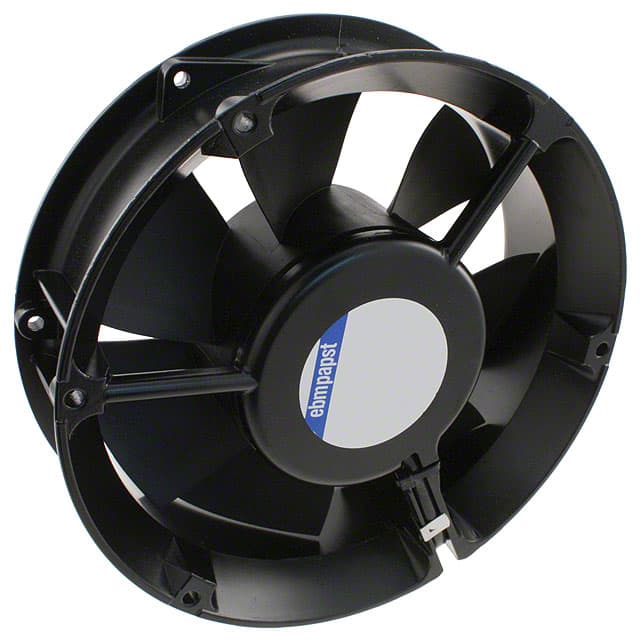

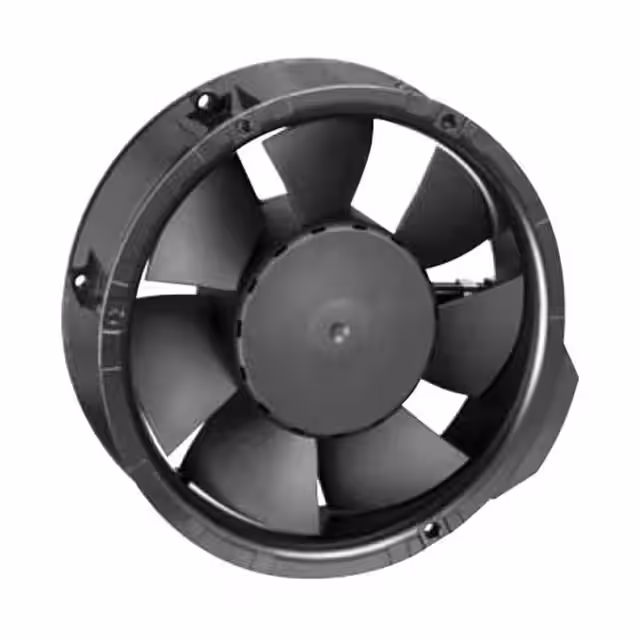

FAN AXL 171.5X50.8MM 24VDC TERM
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 26 W |
| Voltage Range | 12 ~ 28VDC |
| Voltage - Rated | 24VDC |
| AC and DC characteristics | |
| Noise | 61.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Operating Temperature | -4~131°F(-20~55°C) |
| Package | Bulk |
| Size / Dimension | Round - 171.5mm Dia |
| Other | |
| Air Flow | 282.5 CFM (7.91m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Base Product Number | 6224N |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Metal |
| Mfr | ebm-papst Inc. |
| Product Status | Active |
| RPM | 4000 RPM |
| Series | 6200N |
| Static Pressure | - |
| Termination | 2 Terminals |
| Weight | 1.8 lbs (816.5 g) |
| Width | 50.80mm |
