Alpha WireUnited States

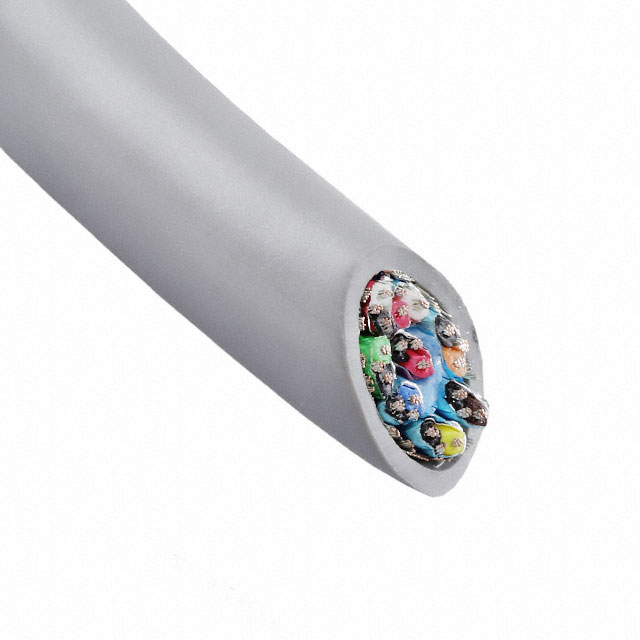

MULTI-PAIR 16COND 24AWG 1000'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 300 V |
| Environment and package | |
| Operating Temperature | -20°C ~ 80°C |
| Package | Spool |
| Other | |
| Base Product Number | 6208C |
| Cable Type | Multi-Pair |
| Conductor Insulation | Foam Polypropylene (FPP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 7/32 |
| Features | Drain Wire, Rip Cord |
| Jacket Color | Slate |
| Jacket (Insulation) Diameter | 0.379" (9.63mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.0350" (0.889mm) |
| Length | 1000.0' (304.8m) |
| Mfr | Alpha Wire |
| Number of Conductors | 16 (8 Pair Twisted) |
| Product Status | Active |
| Ratings | UL Style 2919 |
| Series | - |
| Shield Coverage | 100% |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | - |
| Wire Gauge | 24 AWG |
