3MUnited States

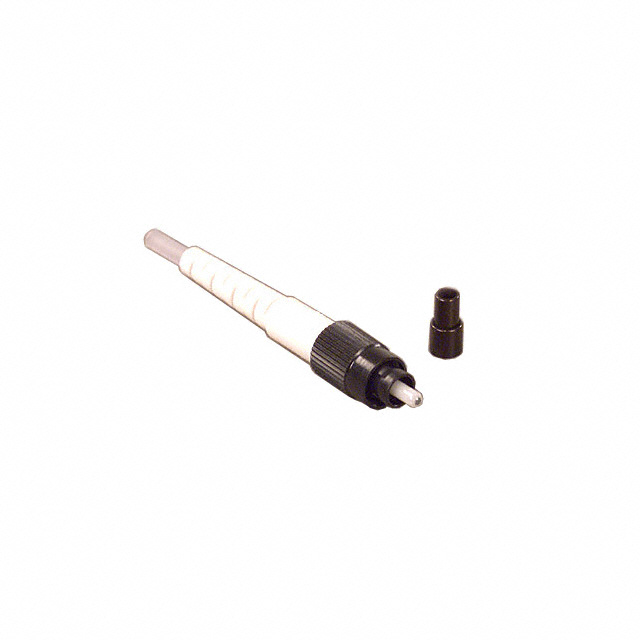

CONN FIBER FC PLUG SMPLX 125UM
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -10°C ~ 60°C |
| Package | Bulk |
| Other | |
| Attenuation - Typ | -0.2dB |
| Body Material | Engineered Resin |
| Boot Color | White |
| Cable Diameter | 2.9mm |
| Connector Style | FC |
| Connector Type | Plug |
| Fastening Type | Threaded |
| Features | Hot Melt, Strain Relief |
| Ferrule Material | Zirconia |
| Fiber Cladding Diameter | 125µm |
| Fiber Core Diameter | - |
| Housing Color | Gray |
| Housing Material | Thermoplastic Elastomer (TPE) |
| Ingress Protection | - |
| Mating Cycles | 500 |
| Mfr | 3M |
| Mode | Multimode |
| Product Status | Active |
| Reflection | -25dB |
| Series | - |
| Simplex/Duplex | Simplex |
