Adafruit Industries LLCUnited States

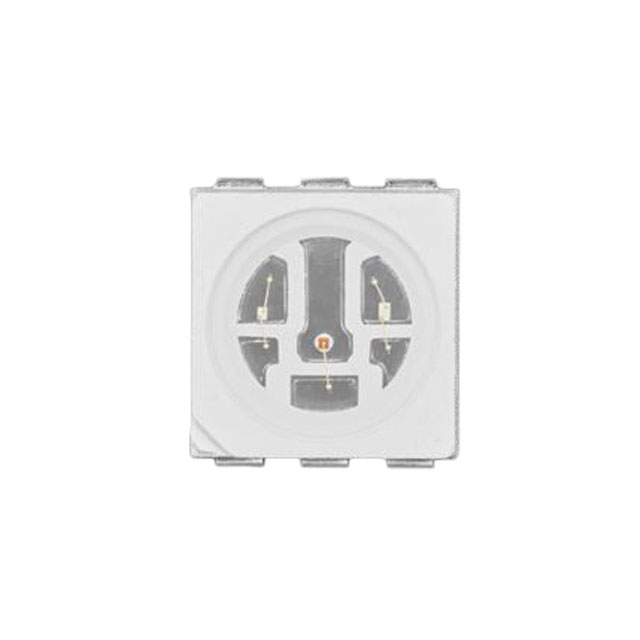

LED RGB 6PLCC SMD 10 PACK
All alternatives
View full reportTechnical parameters
Key specs
ColorMulticolor
Wavelength623 nm
Forward voltage3.1 VMax
Test current20 mA
Luminous intensity700 mcd ~ 1.75 cd
| Power | |
|---|---|
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Voltage - Forward (Vf) (Typ) | 1.95V Red, 3.1V Green, 3.1V Blue |
| Environment and package | |
| Height (Max) | 1.60mm |
| Lens Size | 4.00mm Dia |
| Mounting Type | Surface Mount |
| Package | Bulk |
| Package / Case | 6-SMD, J-Lead |
| Size / Dimension | 5.00mm L x 5.00mm W |
| Supplier Device Package | 6-PLCC |
| Other | |
| Base Product Number | - |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Features | - |
| Lens Color | - |
| Lens Style | Round with Flat Top |
| Lens Transparency | - |
| Mfr | Adafruit Industries LLC |
| Millicandela Rating | 700mcd Red, 1750mcd Green, 900mcd Blue |
| Product Status | Discontinued at Digi-Key |
| Series | - |
| Viewing Angle | - |
| Wavelength - Dominant | - |
| Wavelength - Peak | 623nm Red, 523nm Green, 467nm Blue |
