Würth ElektronikGermany

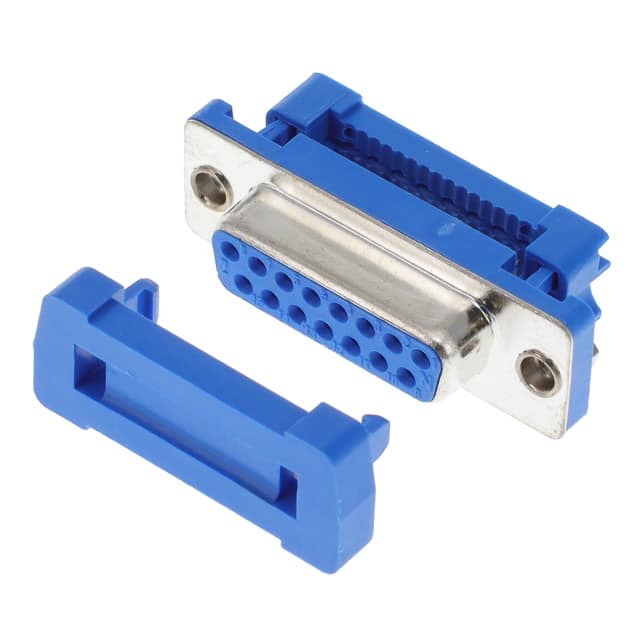

CONN D-SUB RCPT 15POS IDC
All alternatives
View full reportTechnical parameters
Key specs
Positions15
Rows2
GenderFemale
Current rating3 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 3A |
| Voltage Rating | 250VAC |
| Environment and package | |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -55°C~105°C |
| Package | Tray |
| Shell Size, Connector Layout | 2 (DA, A) |
| Other | |
| Backset Spacing | - |
| Color | Blue |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Feed Through, Strain Relief |
| Flange Feature | Cable Side (4-40) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Würth Elektronik |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Product Status | Active |
| Series | WR-DSUB |
| Shell Material, Finish | Steel, Tin Plated |
| Termination | IDC, Ribbon Cable |
| Wire Gauge | 28 AWG |
