ebm-papst Inc.Germany

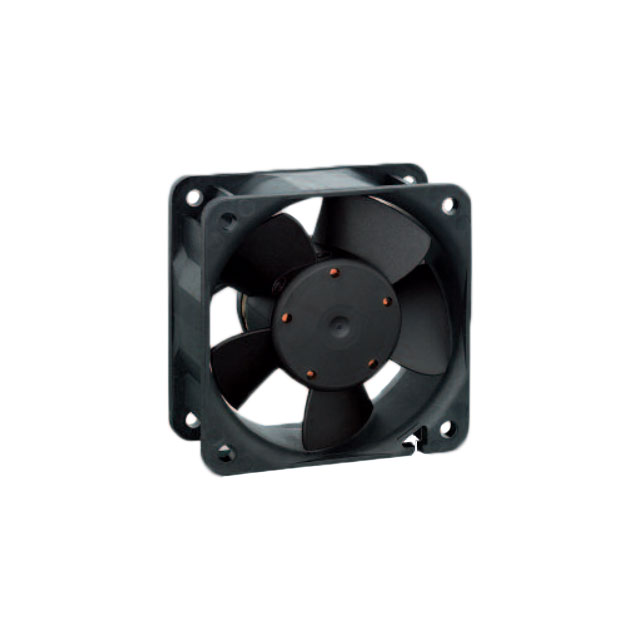

FAN AXIAL 60X25.4MM 24VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 2.9 W |
| Voltage Range | 18 ~ 26VDC |
| Voltage - Rated | 24VDC |
| AC and DC characteristics | |
| Noise | 41.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 60000 Hrs @ 40°C |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| Package | Bulk |
| Size / Dimension | Square - 60mm L x 60mm H |
| Other | |
| Air Flow | 33.0 CFM (0.924m³/min) |
| Approval Agency | - |
| Base Product Number | 614N |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Ingress Protection | - |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Mfr | ebm-papst Inc. |
| Product Status | Active |
| RPM | 6850 RPM |
| Series | 600N |
| Static Pressure | - |
| Termination | 2 Wire Leads |
| Weight | 0.146 lb (66.22 g) |
| Width | 25.40mm |
