Würth ElektronikGermany

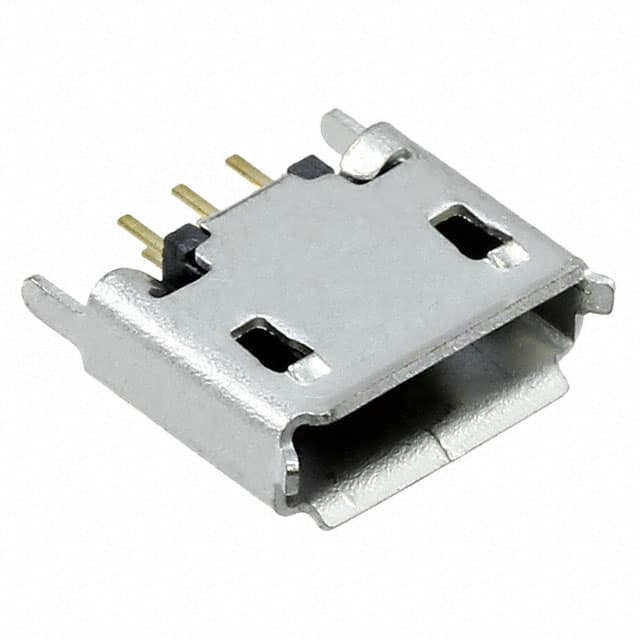

CONN RCPT USB2.0 MICRO AB VERT
All alternatives
View full reportTechnical parameters
Key specs
Positions5
GenderFemale
Current rating1.8 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 1A, 1.8A |
| Voltage - Rated | 30VAC |
| Environment and package | |
| Mounting Feature | Vertical |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Other | |
| Connector Type | USB - micro AB |
| Contact Finish | Gold |
| Features | - |
| Gender | Receptacle |
| Ingress Protection | - |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mfr | Würth Elektronik |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Product Status | Active |
| Series | WR-COM |
| Shell/Shielding Material | Steel, Stainless |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
Documents
No documents are linked to this part yet.
