TE ConnectivitySwitzerland

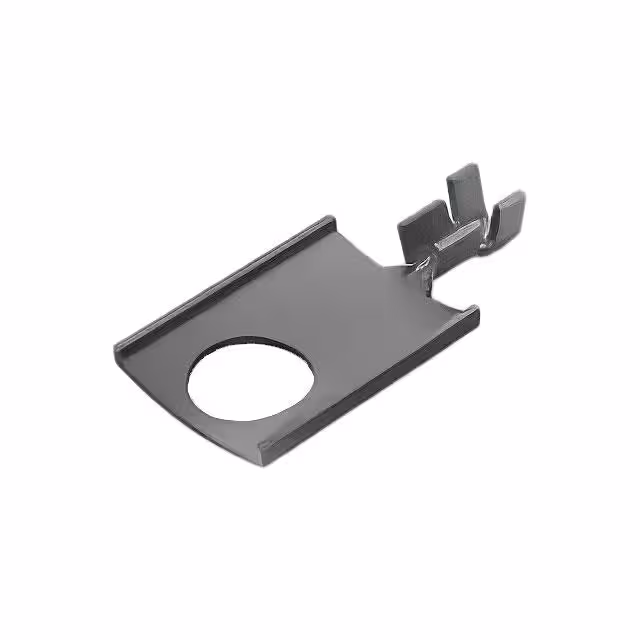

CONN TERM RECT RING 14-18AWG
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Stud/Tab Size | 5/16 Stud |
| Other | |
| Base Product Number | 61359 |
| Color | - |
| Contact Finish | Tin |
| Contact Material | Steel |
| Diameter - Barrel ID | - |
| Diameter - Barrel OD | - |
| Diameter - Ring ID | 0.338" (8.59mm) |
| Features | - |
| Insulation | Non-Insulated |
| Length - Overall | 1.150" (29.21mm) |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Active |
| Series | - |
| Tab Thickness | 0.030" (0.76mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Ring |
| Termination | Crimp |
| Width - Outer Edges | 0.592" (15.04mm) |
| Wire Gauge | 14-18 AWG |
