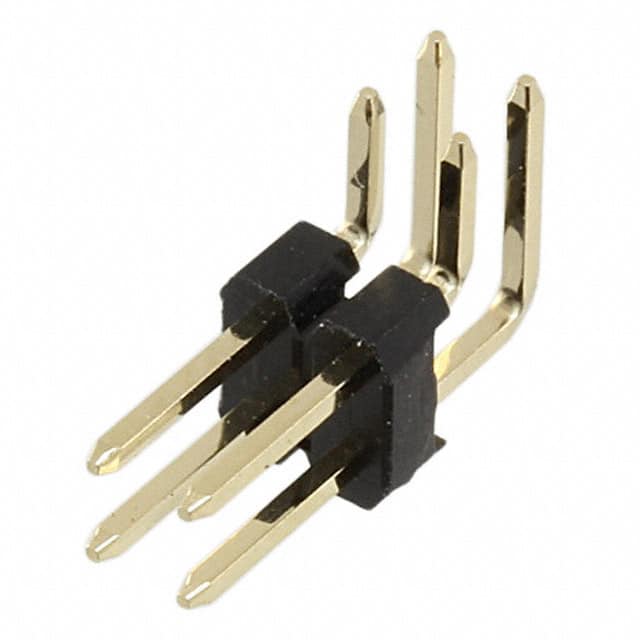

CONN HEADER R/A 4POS 2.54MM
All alternatives
View full reportTechnical parameters
Key specs
Positions4
Rows2
Pitch2.54 mm
GenderMale
Current rating3 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 3A |
| Voltage Rating | 250V |
| Environment and package | |
| Insulation Height | 0.200" (5.08mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -40°C~105°C |
| Package | Bulk |
| Other | |
| Applications | - |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | - |
| Contact Finish Thickness - Mating | - |
| Contact Finish Thickness - Post | - |
| Contact Length - Mating | 0.236" (6.00mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | - |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Würth Elektronik |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Overall Contact Length | - |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Series | WR-PHD |
| Shrouding | Unshrouded |
| Style | Board to Board or Cable |
| Termination | Solder |
