ebm-papst Inc.Germany

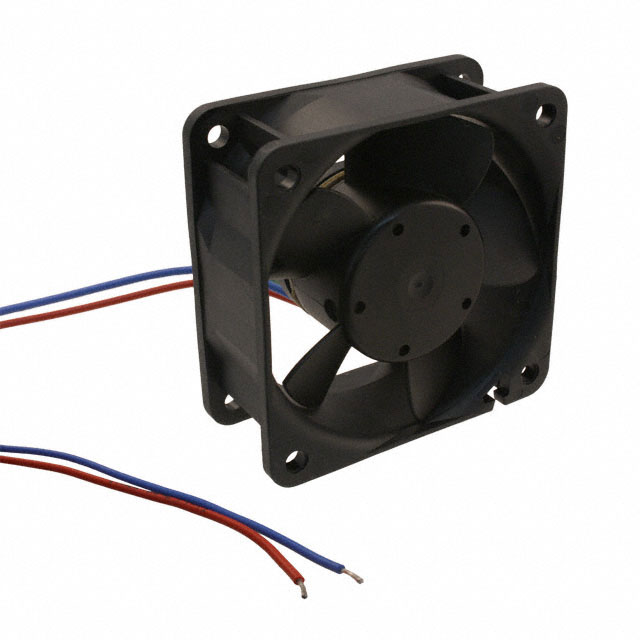

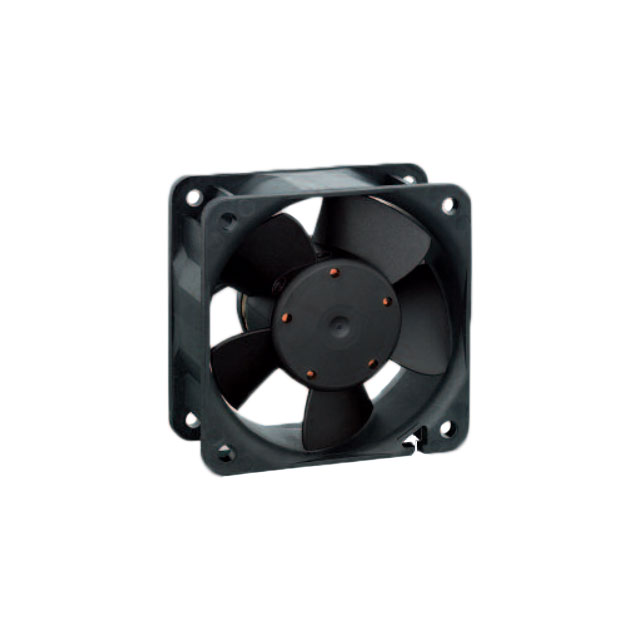

FAN AXIAL 60X25.4MM 12VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 600 mW |
| Voltage Range | 8 ~ 15VDC |
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Noise | 16.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | - |
| Operating Temperature | - |
| Size / Dimension | Square - 60mm L x 60mm H |
| Other | |
| Air Flow | 12.4 CFM (0.347m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Mfr | ebm-papst Inc. |
| Part Status | Obsolete |
| RPM | - |
| Series | 600N |
| Static Pressure | - |
| Termination | 2 Wire Leads |
| Weight | 0.19 lb (86.18 g) |
| Width | 25.40mm |
