TE ConnectivitySwitzerland

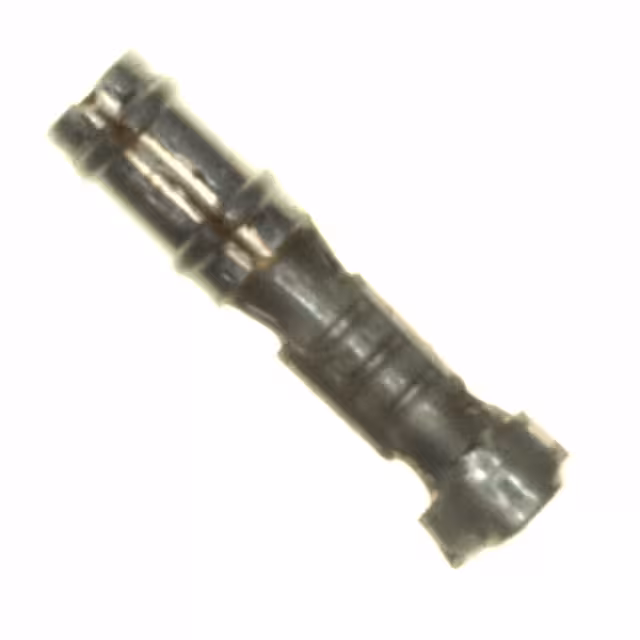

CONN TERM RCPT 22-26AWG CRIMP
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Bulk |
| Other | |
| Base Product Number | 60983 |
| Color | - |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Diameter - Barrel | 0.058" (1.47mm) |
| Features | - |
| Insulation | Non-Insulated |
| Insulation Diameter | 0.035" ~ 0.065" (0.89mm ~ 1.65mm) |
| Length - Barrel | 0.155" (3.94mm) |
| Length - Overall | 0.380" (9.65mm) |
| Material - Insulation | - |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Active |
| Series | - |
| Terminal Type | Female, Receptacle (Socket) |
| Termination | Crimp |
| Wire Gauge | 22-26 AWG |
Documents
No documents are linked to this part yet.
