LAPPGermany

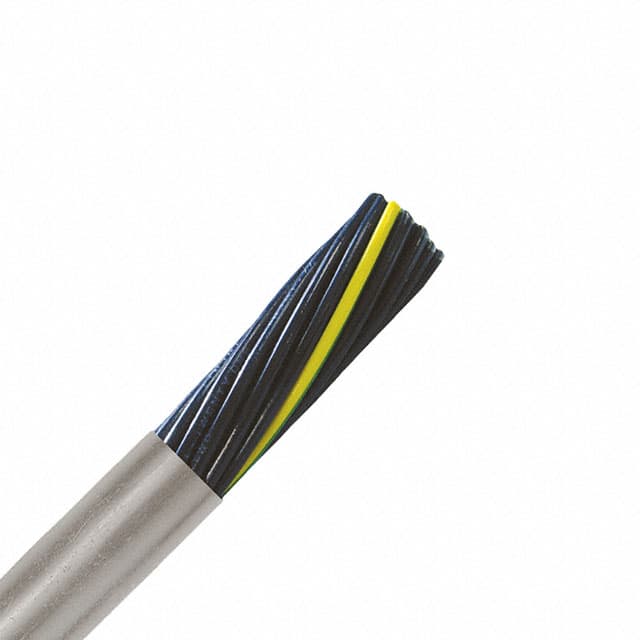

CBL OLFLEX 190 16/4C 1=100FT
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand | 30/0.0102" |
| Features | Direct Burial, Oil Resistant, UV Resistant |
| Jacket Color | Gray |
| Jacket (Insulation) Diameter | 0.345" (8.76mm) |
| Jacket (Insulation) Material | Thermoplastic Polymer |
| Jacket (Insulation) Thickness | - |
| Length | 100.0' (30.5m) |
| Mfr | LAPP |
| Number of Conductors | 4 |
| Product Status | Active |
| Ratings | - |
| Series | ÖLFLEX® |
| Shield Coverage | - |
| Shield Material | - |
| Shield Type | - |
| Usage | Industrial |
| Wire Gauge | 16 AWG |
Documents
No documents are linked to this part yet.
