Würth ElektronikGermany

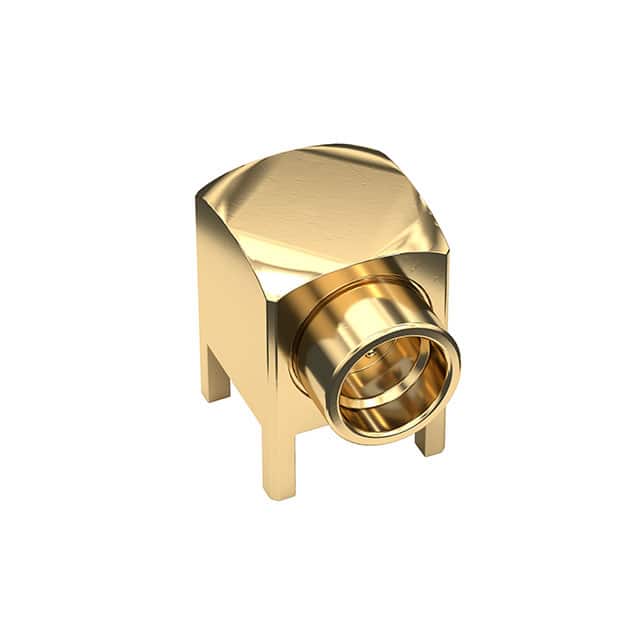

WR-SMP_PCB CONNECTOR_THT PLUG
All alternatives
View full reportTechnical parameters
Key specs
Connector styleSMP
GenderMale
Impedance50 Ω
Max frequency12 GHzMax
| AC and DC characteristics | |
|---|---|
| Frequency - Max | 12 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -65°C~165°C |
| Package | Tray |
| Other | |
| Base Product Number | 6012300212 |
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | - |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMP |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Limited Detent |
| Housing Color | Gold |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | 0.42dB |
| Mating Cycles | 500 |
| Mfr | Würth Elektronik |
| Number of Ports | 1 |
| Product Status | Active |
| Series | WR-SMP |
| Shield Termination | Solder |
