TE ConnectivitySwitzerland

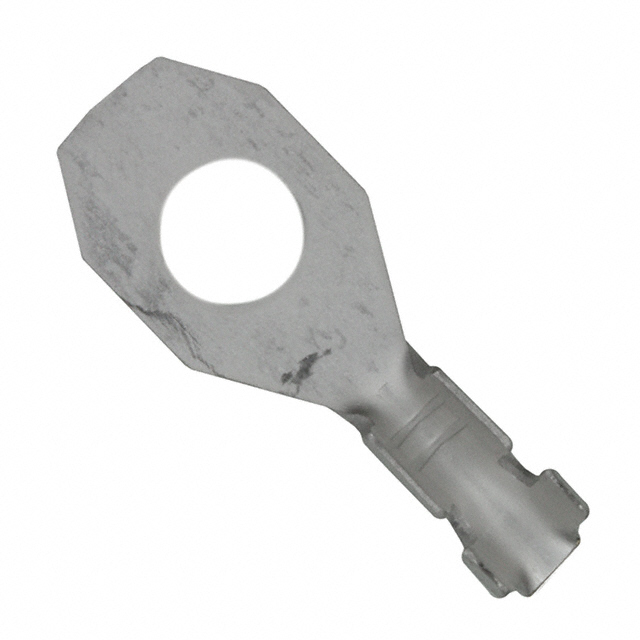

CONN TERM RECT RING 20-26 AWG
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Stud/Tab Size | - |
| Other | |
| Base Product Number | 60123 |
| Color | - |
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | - |
| Insulation | Non-Insulated |
| Insulation Diameter | 0.048" ~ 0.078" (1.22mm ~ 1.98mm) |
| Length - Overall | 0.565" (14.35mm) |
| Material - Insulation | - |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Active |
| Series | - |
| Terminal Type | Flat Sided |
| Termination | Crimp |
| Thickness | 0.020" (0.51mm) |
| Width - Outer Edges | 0.250" (6.35mm) |
| Wire Gauge | 20-26 AWG |
