Würth ElektronikGermany

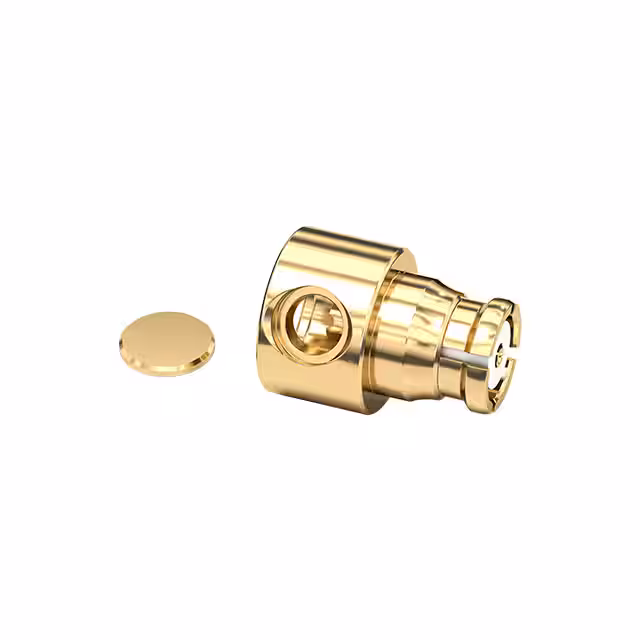

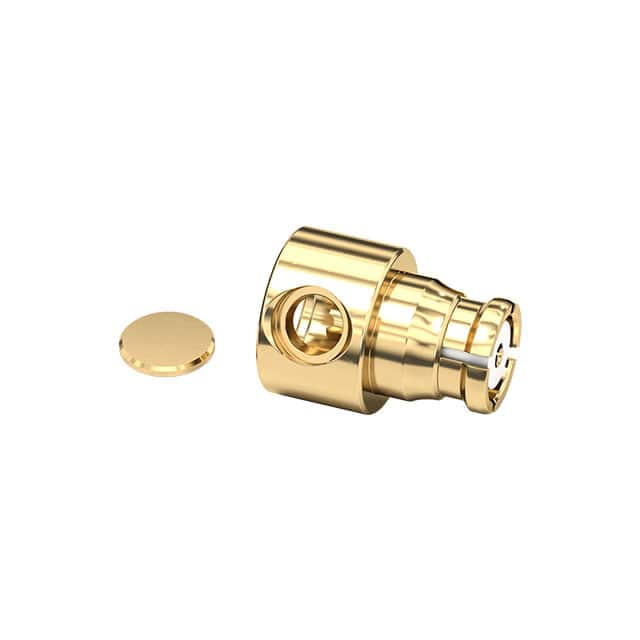

WR-SMP CABLE CONNECTOR_RIGHT ANG
All alternatives
View full reportTechnical parameters
Key specs
Connector styleSMP
GenderFemale
Impedance50 Ω
Max frequency18 GHzMax
| AC and DC characteristics | |
|---|---|
| Frequency - Max | 18 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Operating Temperature | -65°C~165°C |
| Package | Tray |
| Other | |
| Base Product Number | 6011901112 |
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | RG-405 (.085", .086" Semi Rigid) |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMP |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | - |
| Housing Color | Gold |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | 0.51dB |
| Mating Cycles | - |
| Mfr | Würth Elektronik |
| Number of Ports | 1 |
| Product Status | Active |
| Series | WR-SMP |
| Shield Termination | Solder |
