Parallax Inc.United States

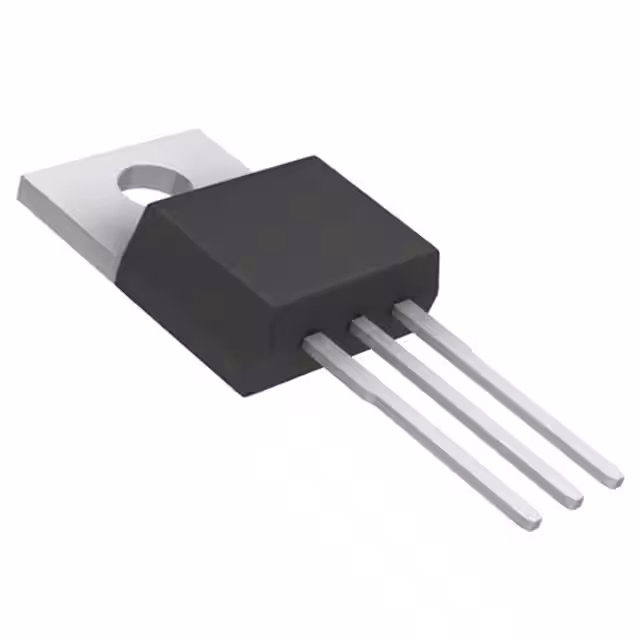

IC REG LINEAR 3.3V 500MA TO220-3
All alternatives
View full reportTechnical parameters
Key specs
Output voltage3.3 V
Output current500 mAMax
Input voltage≤ 26 V
Quiescent current10 mATyp
| Power | |
|---|---|
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 10 mA |
| Current - Supply (Max) | 125 mA |
| Voltage Dropout (Max) | - |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| AC and DC characteristics | |
| PSRR | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~125°C |
| Package | Tube |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| Other | |
| Control Features | - |
| Mfr | Parallax Inc. |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Product Status | Discontinued at Digi-Key |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Series | - |
Documents
No documents are linked to this part yet.
