6008C

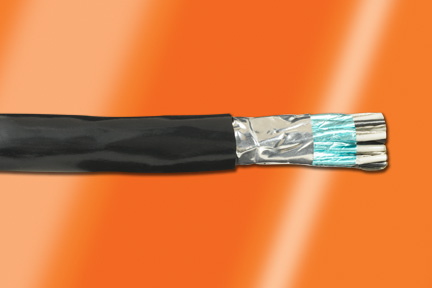

ActiveAlpha Wire 22 AWG, 15 Pair Communication Cable provides precise signal transmission for computer and control applications
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 300 V RMS |
| AC and DC characteristics | |
| 2) Characteristic Impedance | 62 Ω |
| Environment and package | |
| 1) Temperature Range | -20 to 75°C |
| Other | |
| (1) Color Code | Alpha Wire Color Code A |
| 1) Component 1 | 15 X 1 PAIR |
| (1) Foil Direction | Foil Facing In |
| (1) Twists | 9.6 Twists/foot (min) |
| 2) Bend Radius | 10X Cable Diameter |
| 2) Cable Assembly | 15 Components Cabled |
| 2) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| (2) Drain Wire | 22 (SOLID) AWG Tinned Copper |
| 3) CE | EU Low Voltage Directive 2014/35/EU |
| 3) Inductance | 0.19 μH/ft, Nominal |
| 3) Pull Tension | 226 Lbs, Maximum |
| 4) Mutual Capacitance | 25 pF/ft @1 kHz, Nominal |
| 5) Ground Capacitance | 45 pF/ft @1 kHz, Nominal |
| 60°C | 75°C |
| 6) Conductor DCR | 17.3 Ω/1000ft @20°C, Nominal |
| 7) Ind. Shield DC Resistance | 15 Ω/1000ft @20°C, Nominal |
| a) 1000 FT | 30 x 14 x 12 Continuous length |
| a) Color(s) | SLATE |
| a) Twists | 2.1 Twists/foot (min) |
| AWM/STYLE 2493 | CM |
| b) Orientation | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| b) Print | ALPHA WIRE-* P/N 6008C 15PR 22 AWG EXXXXX SHIELDED 75C (UL) C(UL) CMG FT4 OR AWM 2493 CE ROHS * = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] |
| c) Core Wrap | Clear Mylar Tape, 25% Overlap, Min. |
| CM | 75°C |
| Color | BLACK-RED |
| c) Pair | 2/Cond Cabled Together |
| d) Shield | Foil Free Alum/Mylar Tape, 25% Overlap, Min. |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
| Pair | 1 |
