Storm InterfaceUnited Kingdom

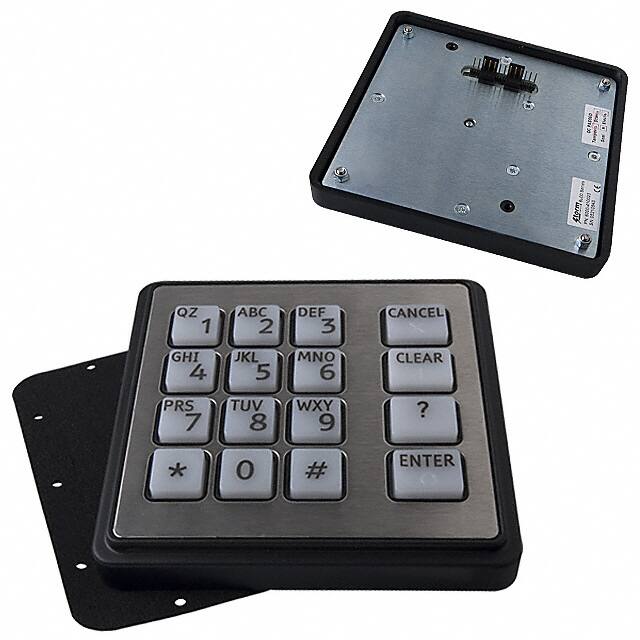

SWITCH KEYPAD 16 KEY 0.05A 24V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Illumination Voltage (Nominal) | - |
| Environment and package | |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature | -20°C~60°C |
| Panel Cutout Dimensions | Rectangular - 115.00mm x 109.50mm |
| Other | |
| Approval Agency | CE, cURus |
| Features | Anti-Vandal |
| Illumination | Illuminated - White |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Key Color | Translucent |
| Key Type | Polymer |
| Legend | Telephone Format, Function Keys |
| Legend Color | Black |
| Legend Type | Fixed |
| Matrix (Columns x Rows) | 4 x 4 |
| Mfr | Storm Interface |
| Number of Keys | 16 |
| Operational Life | - |
| Output Type | Matrix |
| Product Status | Obsolete |
| Series | 6000 |
| Switch Type | Conductive Rubber |
| Termination Style | Pin Header |
Documents
No documents are linked to this part yet.
