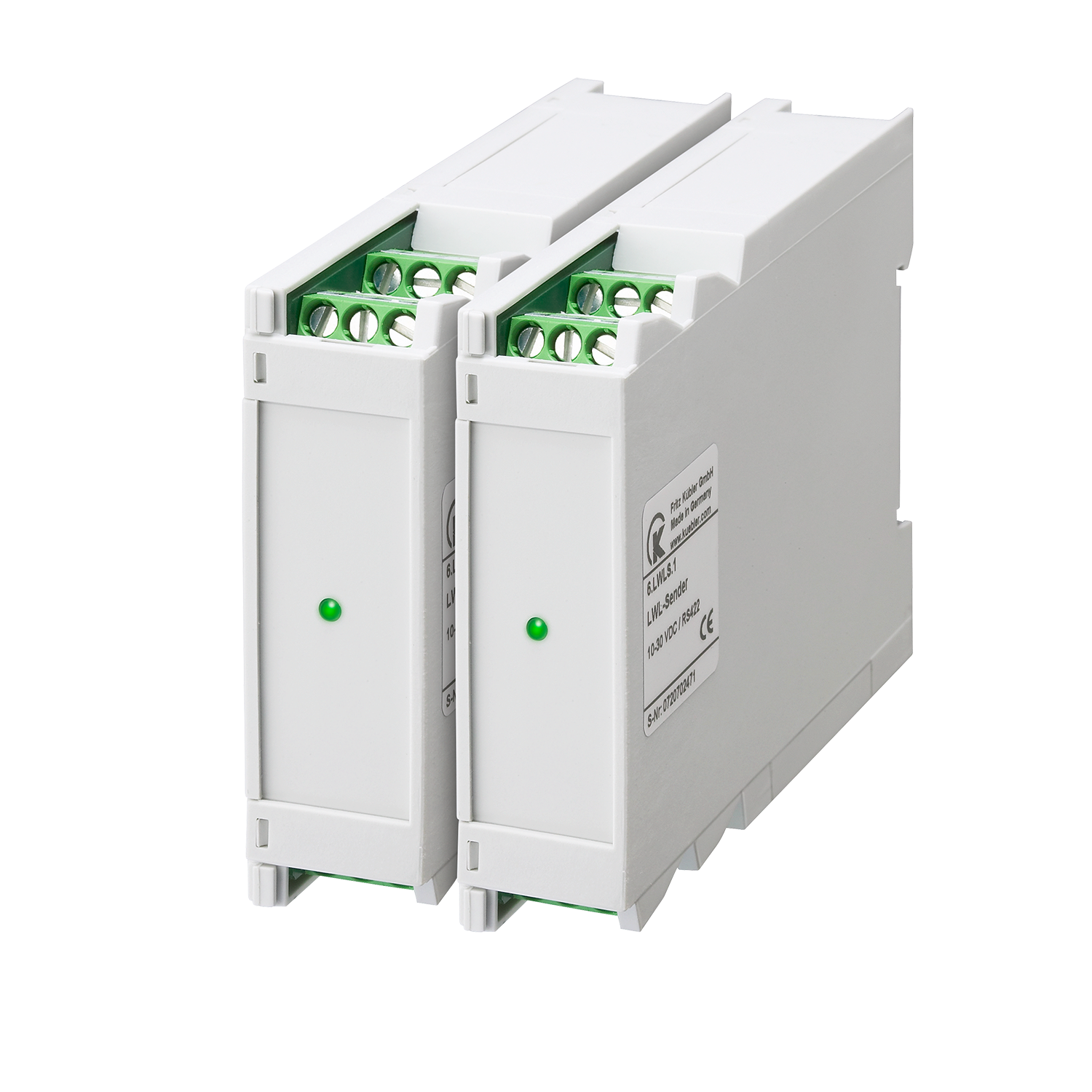

6-LWL

Active

Fiber optic cable - reliable signal transmission under difficult environmental conditions. TTL / RS422, HTL/Push-Pull

All alternatives

Power
Power supply	5 V DC 10...30 V DC
Environment and package
Dimension	22 mm x 75 mm x 110 mm
Working temperature	-10 °C ... 60 °C
Other

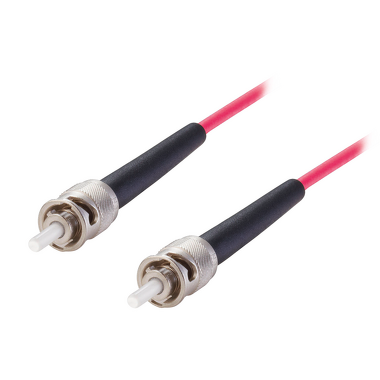

Data sheet Simplex patch cable, with ST simplex (BFOC/2.5) connector - 05.00.60I1.I7I7.XXXM	DE EN FR
Fiber optic LWL PDF ∼ 708,9 KB \| 09.2025	DE EN FR
Inputs coding	A, A\|, B, B\|, C, C\|, D, D\| A, A\|, B, B\|, C, C\|, D, D\|
Interfaces	HTL TTL / RS422
Outputs coding	A, A\|, B, B\|, C, C\|, D, D\| A, A\|, B, B\|, C, C\|, D, D\|
Protection level	IP20 IP40
Range	2000 m
Transmission rate	120 Mbit/s
