TE ConnectivitySwitzerland

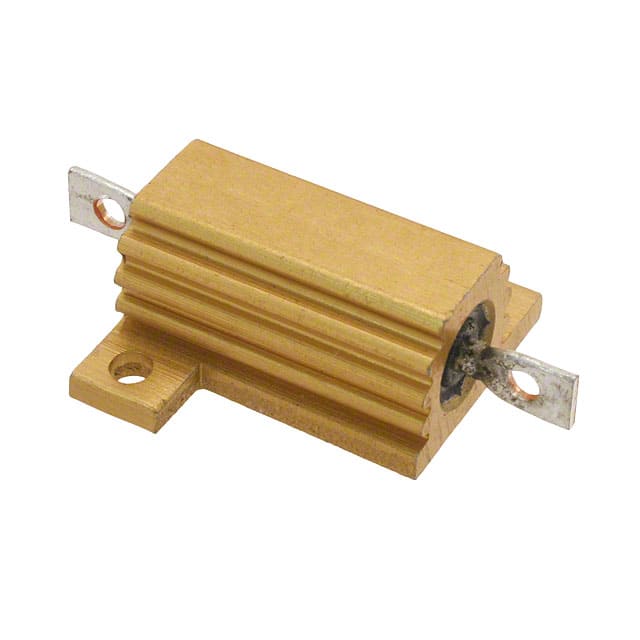

RES CHAS MNT 0.05 OHM 5% 16W
All alternatives
View full reportTechnical parameters
Key specs
Resistance50 mΩ
Tolerance5 %
Power16 W
Temperature coefficient50 ppm/°C
| Power | |
|---|---|
| Power (Watts) | 16W |
| Environment and package | |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Mounting Feature | Flanges |
| Operating Temperature | -55°C~200°C |
| Package | Tray |
| Package / Case | Axial, Box |
| Size / Dimension | 0.827" L x 0.827" W (21.00mm x 21.00mm) |
| Temperature Coefficient | ±50ppm/°C |
| Other | |
| Base Product Number | 1625966 |
| Coating, Housing Type | Aluminum |
| Composition | Wirewound |
| Failure Rate | - |
| Features | - |
| Lead Style | Solder Lugs |
| Mfr | TE Connectivity Passive Product |
| Product Status | Obsolete |
| Resistance | 50 mOhms |
| Series | HS, CGS |
| Tolerance | ±5% |
