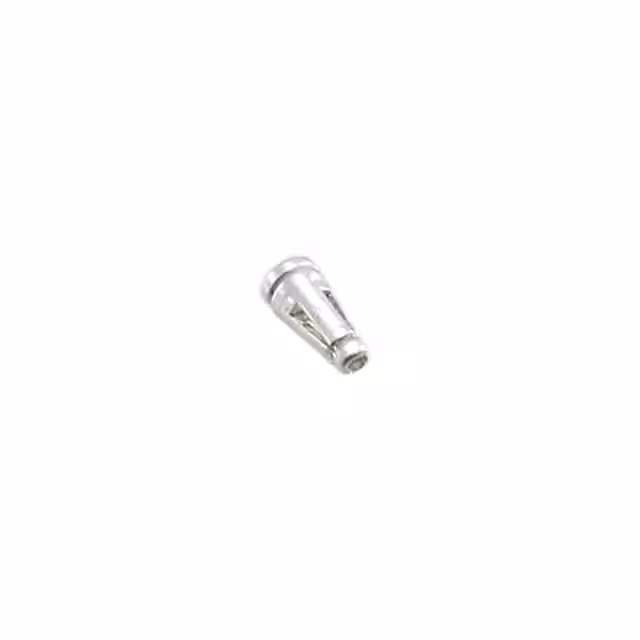

6-1437514-7
TE ConnectivitySwitzerland

6-1437514-7

ActivePC Pin Receptacles, Socket Connectors

CONN PIN RCPT .016-.021 PRESSFIT

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Environment and package
Accepts Square Pin Size0.011" x 0.018" (0.28mm x 0.46mm)
Mounting Hole Diameter0.041" (1.04mm)
Operating Temperature-55°C~105°C
PackageBulk
Other
Accepts Pin Diameter0.016" ~ 0.021" (0.41mm ~ 0.53mm)
Base Product Number1437514
Board Thickness0.030" (0.76mm)
Contact FinishTin-Lead
Contact Finish Thickness80.0µin (2.03µm)
Contact MaterialBeryllium Copper
Features-
Flange Diameter-
Insertion Force-
Length - Overall0.094" (2.39mm)
MfrTE Connectivity AMP Connectors
Pin Hole Diameter0.026" (0.66mm)
Product StatusActive
SeriesHOLTITE
Socket Depth-
Tail Diameter-
Tail TypeNo Tail
TerminationPress-Fit
