Diotec SemiconductorGermany

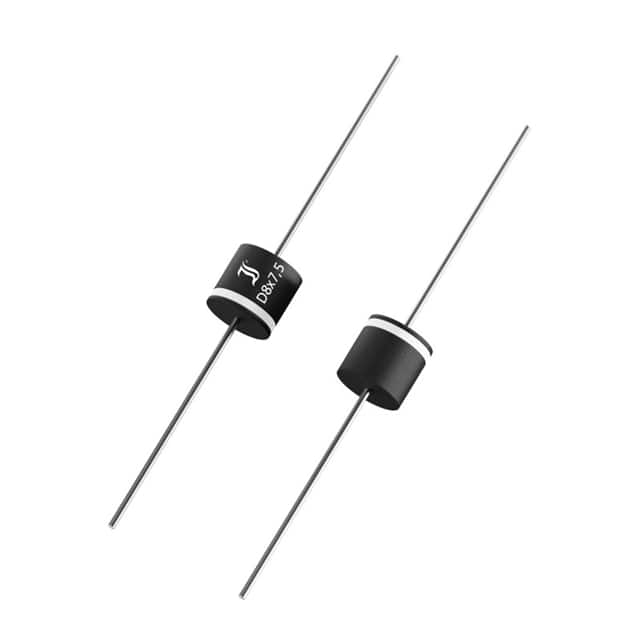

TVS, 78V, 5000W Uni
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage78 V
Breakdown voltage86.7 V
Clamping voltage126 VMax
Peak pulse power5 kW
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 40A |
| Power Line Protection | No |
| Power - Peak Pulse | 5000W (5kW) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 86.7V |
| Voltage - Clamping (Max) @ Ipp | 126V |
| Voltage - Reverse Standoff (Typ) | 78V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -50°C~175°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | P600, Axial |
| Supplier Device Package | P600 |
| Other | |
| Applications | General Purpose |
| Mfr | Diotec Semiconductor |
| Product Status | Active |
| Series | - |
| Type | Zener |
