Micro Commercial CoUnited States

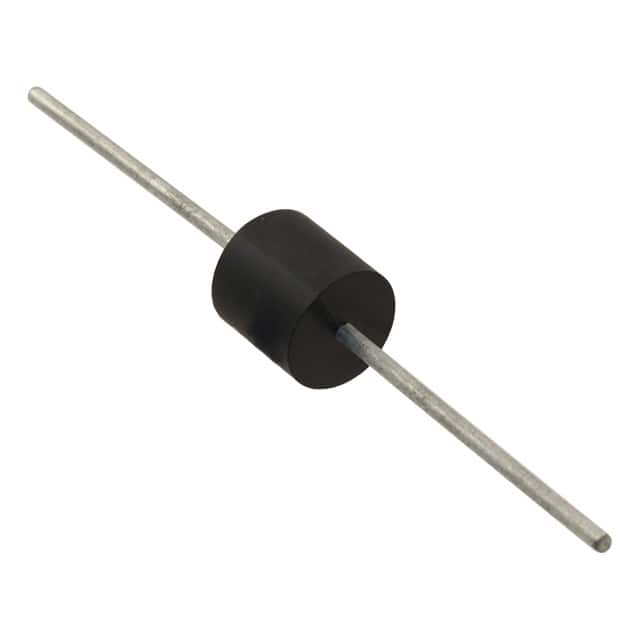

TVS DIODE 7.5VWM 12.9VC R6
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage7.5 V
Breakdown voltage8.33 V
Clamping voltage12.9 VMax
Peak pulse power5 kW
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | - |
| Power Line Protection | No |
| Power - Peak Pulse | 5000W (5kW) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 8.33V |
| Voltage - Clamping (Max) @ Ipp | 12.9V |
| Voltage - Reverse Standoff (Typ) | 7.5V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~175°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Package / Case | R-6, Axial |
| Supplier Device Package | R-6 |
| Other | |
| Applications | General Purpose |
| Base Product Number | 5KP |
| Mfr | Micro Commercial Co |
| Product Status | Active |
| Series | - |
| Type | Zener |
