ebm-papst Inc.Germany

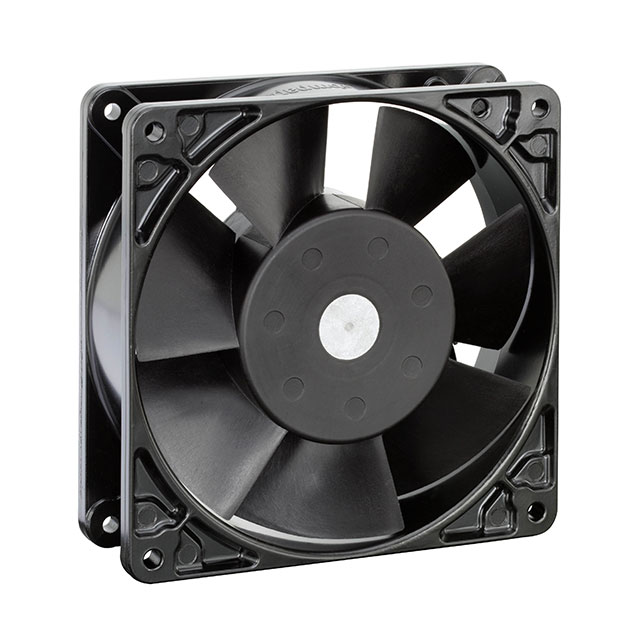

FAN AXIAL 127X38MM 115VAC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 17.00W |
| Voltage Range | - |
| Voltage - Rated | 115VAC |
| AC and DC characteristics | |
| Noise | 46.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | - |
| Operating Temperature | - |
| Package | Bulk |
| Size / Dimension | Square - 127mm L x 127mm H |
| Other | |
| Air Flow | 121.2 CFM (3.39m³/min) |
| Approval Agency | - |
| Bearing Type | Sintec |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Polyamide (PA), Nylon |
| Material - Frame | Metal |
| Mfr | ebm-papst Inc. |
| Product Status | Obsolete |
| RPM | - |
| Series | 5900 |
| Static Pressure | - |
| Termination | 2 Terminals |
| Width | 38.00mm |
