Bourns Inc.United States

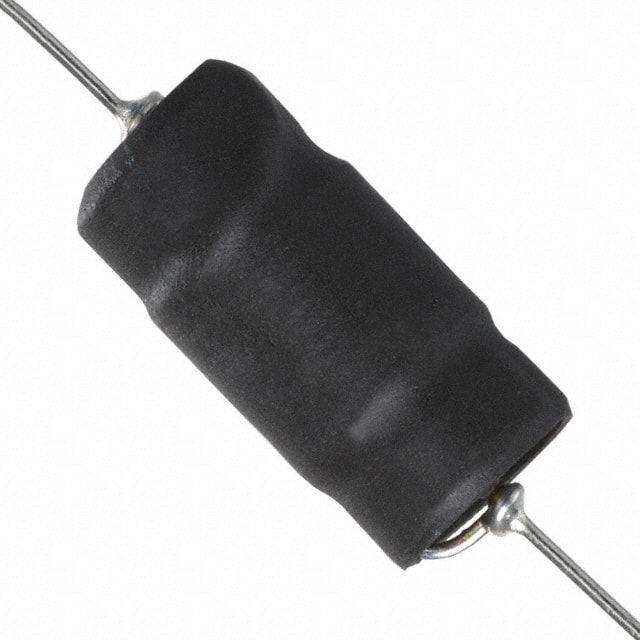

FIXED IND 10MH 230MA 7.6 OHM TH
All alternatives
View full reportTechnical parameters
Key specs
Inductance10 mH
Rated current230 mAMax
Saturation current260 mAMax
DC resistance7.6 ΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 230 mA |
| Current - Saturation (Isat) | 260mA |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 1 kHz |
| Environment and package | |
| Height - Seated (Max) | - |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Tray |
| Package / Case | Axial |
| Size / Dimension | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) |
| Supplier Device Package | - |
| Other | |
| Base Product Number | 5900 |
| DC Resistance (DCR) | 7.6Ohm Max |
| Inductance | 10 mH |
| Material - Core | Ferrite |
| Mfr | Bourns Inc. |
| Product Status | Obsolete |
| Q @ Freq | - |
| Ratings | - |
| Series | 5900 |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Type | Drum Core, Wirewound |
