Switchcraft Inc.United States

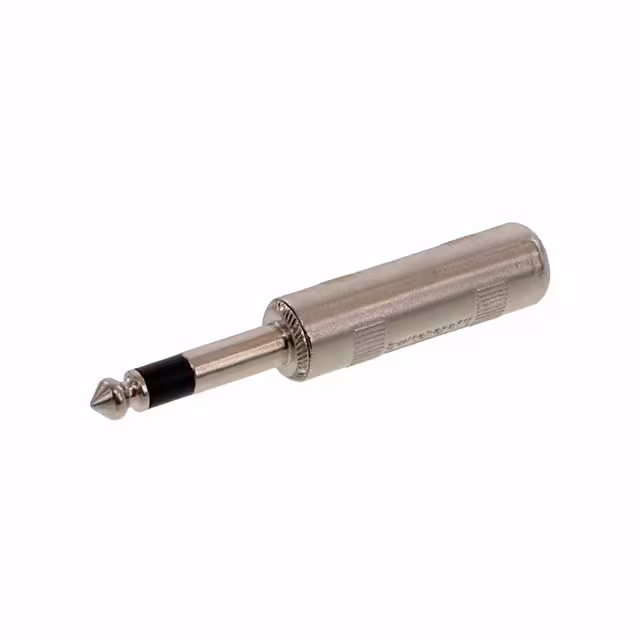

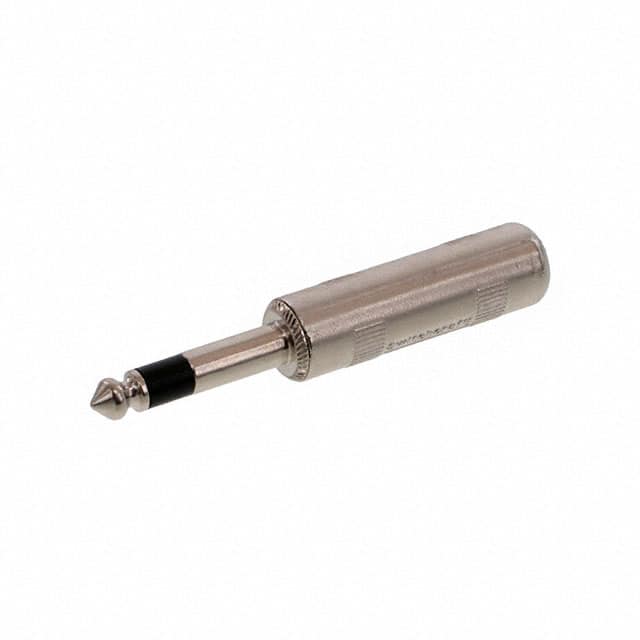

CONN PLUG MONO 6.35MM 2COND
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Rated | - |
| Environment and package | |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | - |
| Package | Bulk |
| Panel Hole Size | - |
| Thread Size | - |
| Other | |
| Actual Diameter | 0.250" (6.35mm) |
| Base Product Number | - |
| Body Color | Silver |
| Body Material | Copper Alloy |
| Cable Opening | 0.297" (7.54mm) |
| Connector Type | Phone Plug |
| Contact Material | - |
| Contact Material - Plating | - |
| Features | - |
| Gender | Male |
| Housing Material | Zinc |
| Includes | 3 pcs - 1 Connector, 1 Handle, 1 Insulator Tube |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
| Insulation Color | - |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 1.188" (30.20mm) |
| Mfr | Switchcraft Inc. |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Product Status | Active |
| Series | - |
| Shielding | Shielded |
| Signal Lines | Mono |
| Termination | Solder |
