5878_EtherCAT

For real-time communication: Industrial Ethernet encoders with EtherCAT interface. , IIoT ready, EtherCAT, Ø 58 mm, Hollow shaft, optical

See alternatives Ask AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Power
Power supply	10...30 V DC
AC and DC characteristics
Resolution max.	16 bits singleturn
Environment and package
Dimension	Ø 58 mm
Working temperature	-40 °C ... +80 °C
Other
Connection types	M12 connector radial

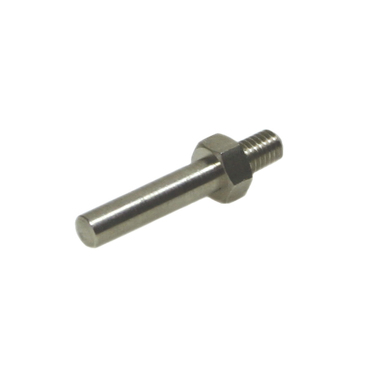

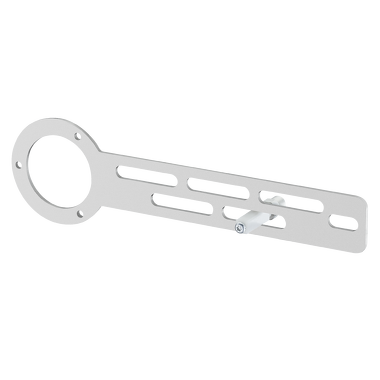

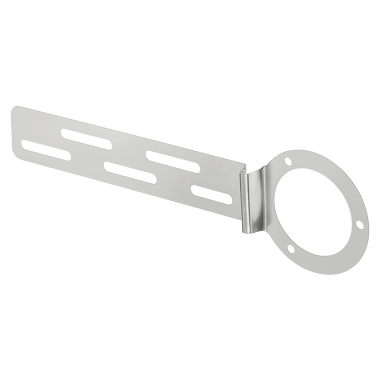

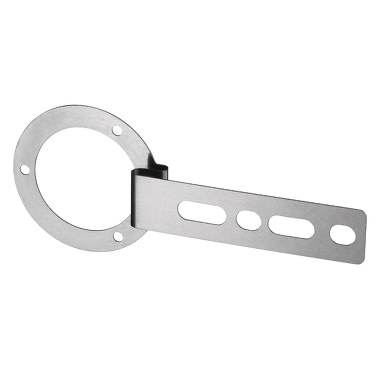

Data sheet Accessories hollow shaft encoder	DE EN FR
Data sheet Cordset RJ45 connector + M12 pin, 4-pin, D-coded, PUR cable, Profibus - 05.00.6031.7444.xxxM	DE EN FR
Data sheet M12 cable satez, PUR, pin, 4-pin, D-coded, open end	DE EN FR
Data sheet M12 cable set, PUR, 2xpin, 4-pin - 05.00.6031.4444.XXXM	DE EN FR
Data sheet M12 cordset, PUR, male, angled, 4-pin, D-coded, open end - 05.00.6031.4511.xxxM	DE EN FR

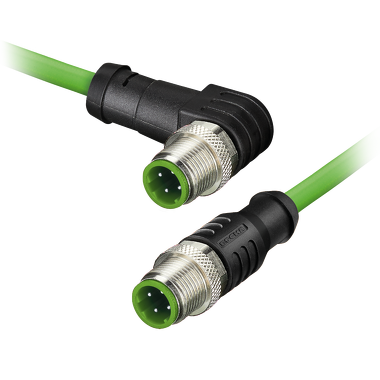

Data sheet M12 cordset, PUR, male straight - angled, 4-pin, D-coded - 05.00.6031.4544.0xxxM	DE EN FR
Data sheet M12 cordset, PUR, socket, 4-pin, A-coded, open end	DE EN FR
Data sheet M12 cordset, PUR, socket, 4-pin, A-coded + pin	DE EN FR
Data sheet M12 cordset, PUR, socket, angled, 4-pin, A-coded, open end - 05.00.6061.6311.xxxM	DE EN FR
Data sheet M12 cordset, PUR, socket, V4A, 4-pin, A-coded, open end - 05.00.6061.D211.xxxM	DE EN FR
Data sheet M12 male, angled, 4-pin, D-coded - 8.0000.5128.0000	DE EN FR
Data sheet M12 pin, 4-pole, D-coded	DE EN FR
Data sheet M12 pin, Ex 2/22, 5-pin, D-coded	DE EN FR
Data sheet M12, PUR, male, 4-pin, D-coded, stainless steel - 05.00.6031.G4G4	DE EN FR
Data sheet M12, PUR, male, 4-pin, D-coded, stainless steel + open - 05.00.6031.G411	DE EN FR
Data sheet M12, PUR, male angled, 4-pin, D-coded, stainless steel - 05.00.6031.G511	DE EN FR
Data sheet M12, PUR, socket, 4-pin, A-coded, stainless steel - 05.00.6061.D311	DE EN FR
Data sheet M12, PUR, socket, 4-pin, A-coded, stainless steel + pin - 05.00.6061.D4D2	DE EN FR
Data sheet M12 socket, 4-pin, A-coded	DE EN FR
Data sheet M12 socket, angled, 4-pin, A-coded	DE EN FR
Encoder with EtherCAT interface PDF ∼ 2,1 MB \| 09.2020	DE EN
Flange type	Ø 58.00 mm Ø 63.00 mm Ø 65.00 mm
Interfaces	EtherCAT
Max. rotational speed	9.000 min -1
Protection level	IP65 IP67
Salt spray test ManufacturersDeclaration PDF ∼ 39,6 KB \| 05.2023	DE EN
Scanning	optical
Sendix 5858 / 5878 EtherCAT PDF ∼ 1,2 MB \| 12.2025	DE EN FR
Sendix 58x8 EtherCAT ETG Certificate PDF ∼ 688,1 KB \| 10.2014	EN
Shaft type	3/8 " hollow shaft, blind hole 10 mm hollow shaft, blind hole 12 mm hollow shaft, blind hole 14 mm hollow shaft, blind hole 15 mm hollow shaft, blind hole 1/2 " hollow shaft, blind hole
UL CoC USA/ Canada - Encoders PDF ∼ 503,1 KB \| 03.2025	EN
Weight	500 g
