IMS Connector SystemsGermany
All alternatives
View full reportTechnical parameters
Key specs
Impedance50 Ω
| AC and DC characteristics | |
|---|---|
| Impedance | 50 Ohm |
| Environment and package | |
| Mounting style PCB | THR - type / Pin & Paste |
| Other | |
| Application | High Speed Data Connectors |
| Color coding | B |
| Locking mechanism | Quick Lock Types |
| Male / Female | Male |
| Markets | Automotive |
| Packaging | Tape and reel packaging |
| Plating | 7 = Sn |
| Pole Number | 2 |

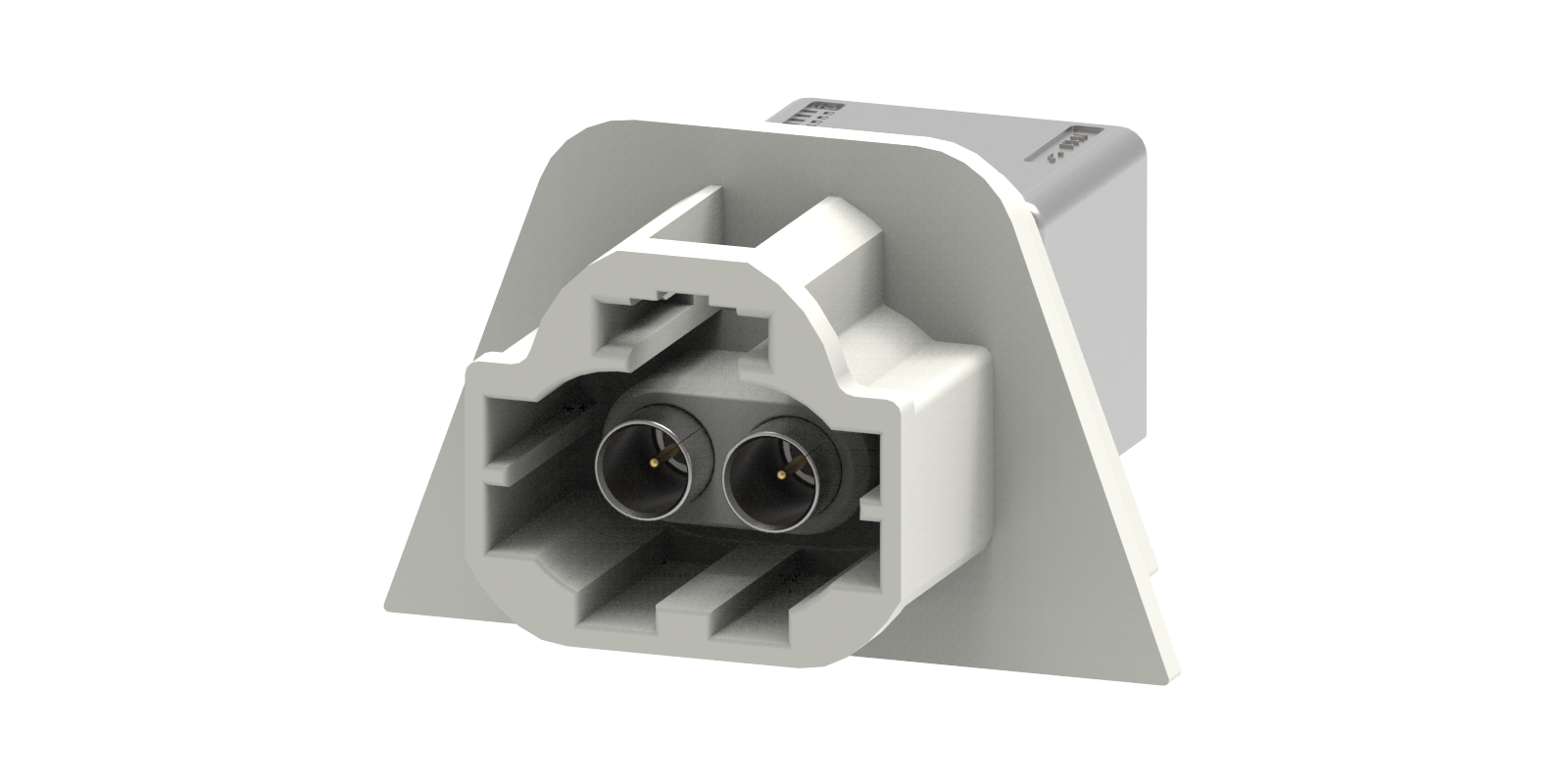

| Product style | PCB Mount Plug 2-pole - Locking position 12:00 |
| Product termination | PCB connector |
| Sealing | IPX9K in mated cond. |
| Series | MCAHS (Sealed) |
| Straight / Angle | Angle |
