Alpha WireUnited States

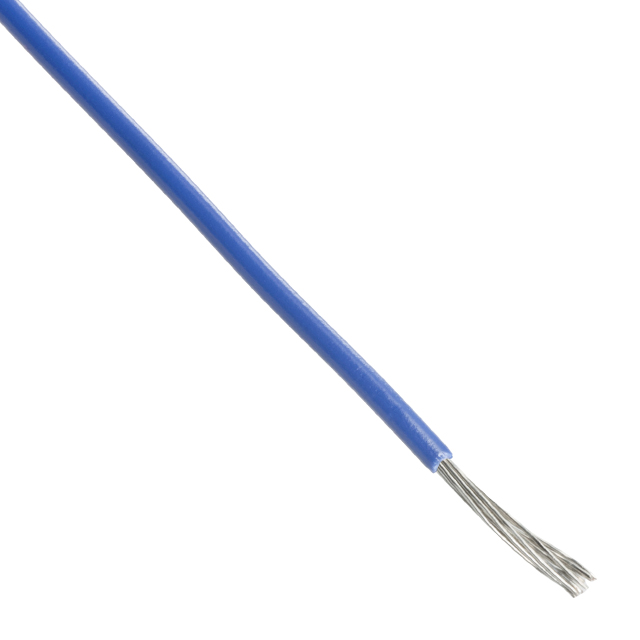

HOOK-UP STRND 18AWG BLU 100'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 1000V |
| Environment and package | |
| Grade | - |
| Operating Temperature | -60°C ~ 200°C |
| Package | Spool |
| Qualification | MIL-W-16878/5 Type EE |
| Other | |
| Base Product Number | 5877 |
| Cable Type | Hook-Up |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand | 19/30 |
| Features | - |
| Jacket Color | Blue |
| Jacket (Insulation) Diameter | 0.079" (2.01mm) |
| Jacket (Insulation) Material | Polytetrafluoroethylene (PTFE) |
| Jacket (Insulation) Thickness | 0.014" (0.35mm) |
| Length | 100.0' (30.5m) |
| Mfr | Alpha Wire |
| Product Status | Active |
| Ratings | UL Style 1180 |
| Series | - |
| Wire Gauge | 18 AWG |
Documents
No documents are linked to this part yet.
