Alpha WireUnited States
5876

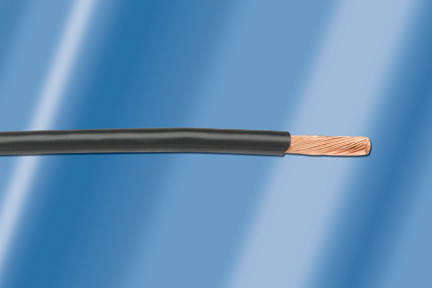

ActiveOur hook-up wire is available in a variety of insulations to meet your electrical and mechanical needs.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 1000 V RMS |
| Environment and package | |
| 1) Temperature Range | -60 to 200°C |
| Other | |
| (1) Color(s) | WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN ORANGE, SLATE, VIOLET |
| 1) Component 1 | 1 X 1 HOOKUP |
| 1) UL | 2) Military |
| 200°C / 300 V RMS | 200°C / 1000 V RMS |
| 2) Bend Radius | 10X Cable Diameter |
| 2) Inductance | 0.05 μH/ft, Nominal |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 3) Conductor DCR | 8.7 Ω/1000ft @20°C, Nominal |
| 3) Other | NEMA HP3-EEXBGE |
| 3) Pull Tension | 9.6 Lbs, Maximum |
| a) 1000 FT | 6.5 x 4 x 2.5 Max. 3 separate pieces; Min length/piece 100 FT. |
| AWM/STYLE 1180 | MIL-W-16878/5 (Type EE) |
| b) 100 FT | 2.75 x 2 x 1.125 Continuous length |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
