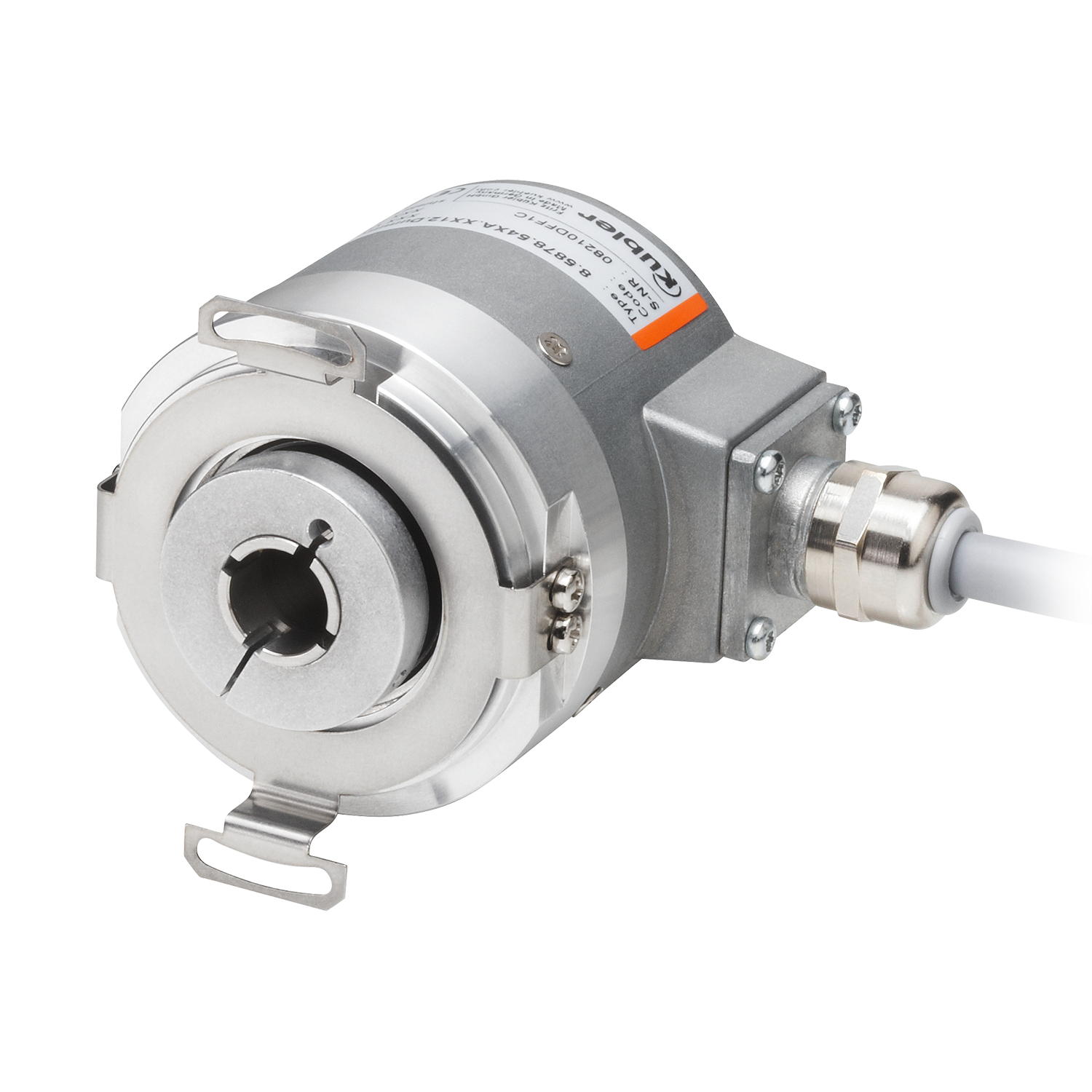

For drive technology. Encoders with additional incremental track. , SSI, BiSS, Ø 58 mm, Hollow shaft, optical

See alternatives Ask AI FAEDatasheet PDF

All alternatives

Technical parameters

Power
Power supply	5 V DC 10...30 V DC
AC and DC characteristics
Resolution max.	2.048 ppr incremental 21 bits singleturn
Environment and package
Dimension	Ø 58 mm
Working temperature	-40 °C ... +90 °C
Other
BISS EDS - Protocol description PDF ∼ 295,6 KB \| 07.2021	EN
BISS - Encoder Profile PB3	Website
BiSS - Interface Homepage	Website
BiSS - Protocol Description Bidirectional	Website
BISS - Protocol Description Unidirectional	Website
Connection types	Axial cable Radial cable Tangential cable M23 connector radial M12 connector radial

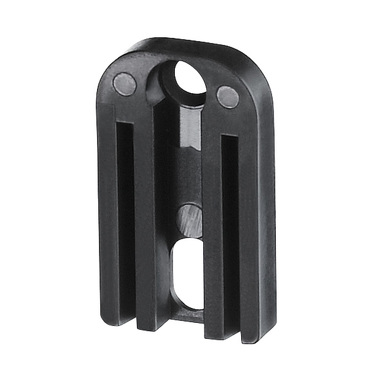

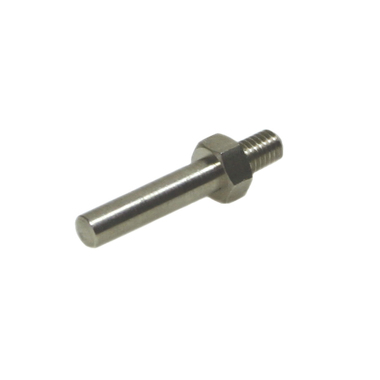

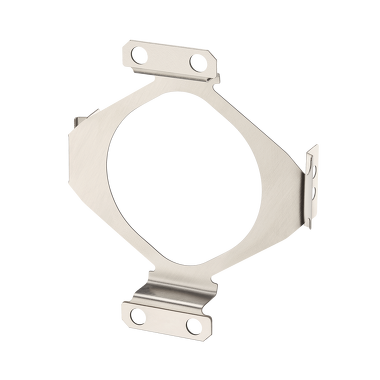

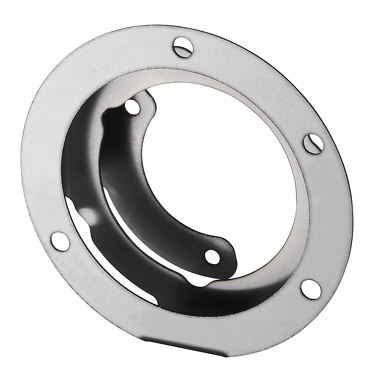

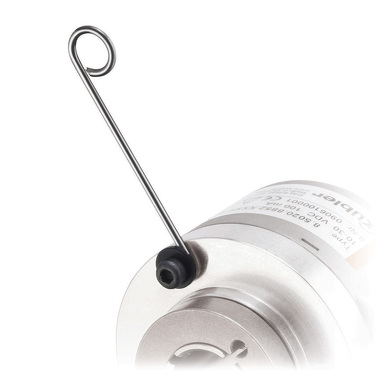

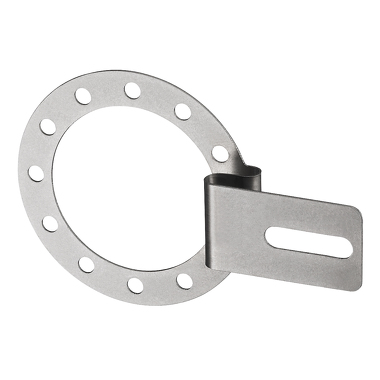

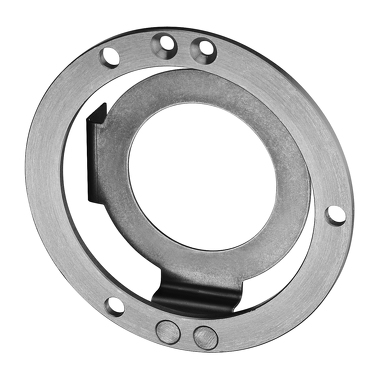

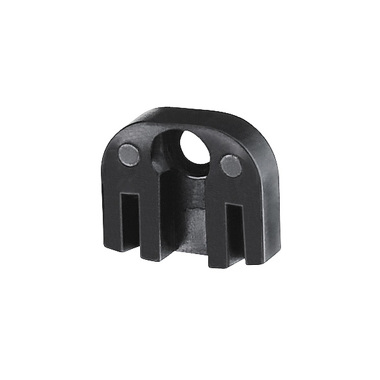

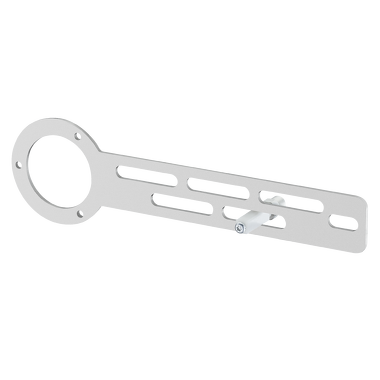

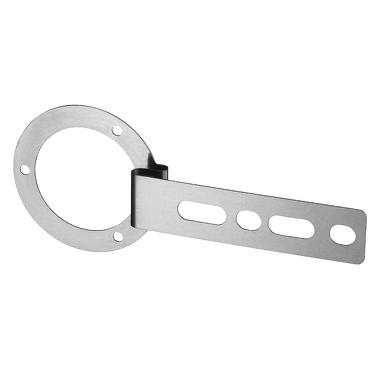

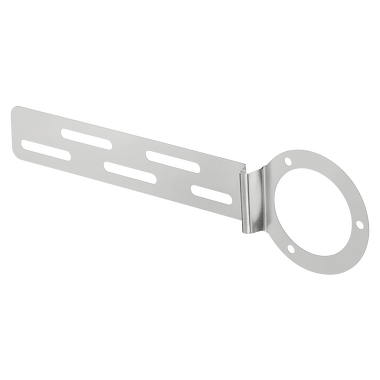

Data sheet Accessories hollow shaft encoder	DE EN FR

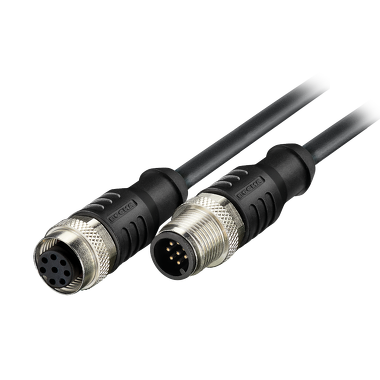

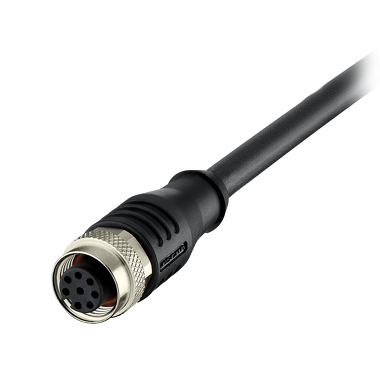

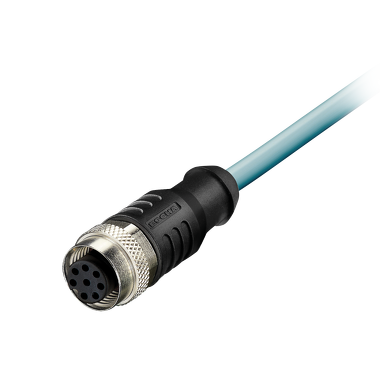

Data sheet M12 cordset, PUR, socket, 8-pin, A-coded, open end	DE EN FR
Data sheet M12 cordset, PUR, socket 8-pin, A-coded + pin - 05.00.6051.8284.0xxM	DE EN FR

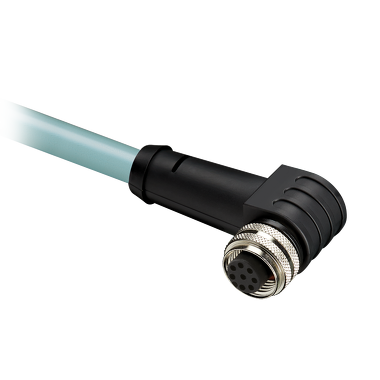

Data sheet M12 cordset, PUR, socket, angled, 8-pin, A-coded, open end - 05.00.6051.8311.XXXM	DE EN FR
Data sheet M12 cordset, PUR, socket, V4A, 8-pin, A-coded, open end - 05.00.6051.F211.xxxM	DE EN FR
Data sheet M12 cordset, PVC, female 8-pin, A-coded, angled, open end	DE EN FR
Data sheet M12 cordset, PVC, socket, 8-pin, A-coded, angled, with integrated control LEDs, open end	DE EN FR
Data sheet M12 cordset, PVC, socket, 8-pin, A-coded, open end	DE EN FR
Data sheet M12 socket, 8-pin, A-coded	DE EN FR
Data sheet M12 socket, Ex 1/21 + Ex 2/22, 8-pin, A-coded	DE EN FR
Data sheet M12 socket, stainless steel V4A, 8-pin, A-coded	DE EN FR
Data sheet M23 cable set, PUR, socket, 12-pin, counting direction cw, end open - 8.0000.6J01.00xx.0051	DE EN FR
Data sheet M23 cable set, PUR, socket, 12-pin, counting direction cw, open end - 8.0000.6J01.00xx.0043	DE EN FR
Data sheet M23 cable set, PUR, socket, angled, 12-pin, counting direction cw, open end - 8.0000.6J07.0001.xxxx	DE EN FR
Data sheet M23 cable set, PVC, socket, 12-pin, counting direction cw, end open	DE EN FR
Data sheet M23 cable set, PVC, socket, 12-pin, counting direction cw, end open - 8.0000.6201.xxxx	DE EN FR
Data sheet M23 cable set, PVC, socket, 12-pin, counting direction cw + pin, counting direction ccw - 8.0000.6905.00xx.0032	DE EN FR
Data sheet M23 connector, socket, 12-pin, counting direction cw	DE EN FR
Data sheet M23 Cordset, PE-X, female, 12-pin, counting direction cw, end open	DE EN FR
Data sheet M23 socket, angled, 12-pin, counting direction cw - 8.0000.5017.0000	DE EN FR
Flange type	Ø 58.00 mm Ø 63.00 mm Ø 65.00 mm Ø 72.00 mm
Interfaces	SSI, binär SSI, gray SSI + 2048 ppr SinCos SSI + 2048 ppr RS422 BiSS BiSS + 2048 ppr SinCos BiSS + 2048 ppr RS422
Max. rotational speed	9.000 min -1
Protection level	IP65 IP67
Salt spray test ManufacturersDeclaration PDF ∼ 39,6 KB \| 05.2023	DE EN
Scanning	optical
Sendix 5853 / 5873 PDF ∼ 1.019,1 KB \| 07.2026	DE EN FR
Shaft type	10 mm hollow shaft, through 12 mm hollow shaft, through 14 mm hollow shaft, through 15 mm hollow shaft, through 3/8 " hollow shaft, through
UL CoC USA/ Canada - Encoders PDF ∼ 503,1 KB \| 03.2025	EN
Weight	350 g
