586

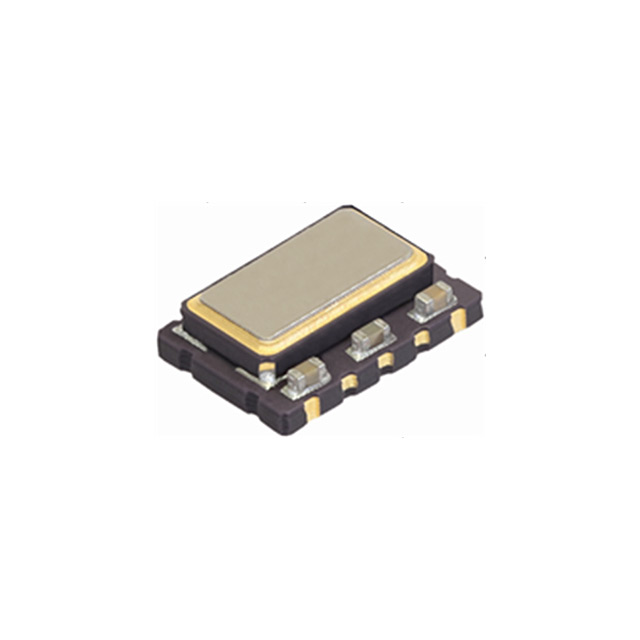

ActiveCTS Model 586 is a high performance Temperature Compensated Crystal Oscillator [TCXO]. Employing analog IC technology that provides a HCMOS output, high-order temperature compensation engine; coupled with a fundamental quartz crystal M586 has excellent stability and low jitter/phase noise performance. Download the CTS components are stocked and sold through a global network of distributors & sales representatives. Select your preferred partner in the link below.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage (V) | 2.5V / 3.0V / 3.3V |
| AC and DC characteristics | |
| Frequency Range (MHz) | 5 - 52 |
| Frequency Stability (PPM) | ±0.5 / ±1.0 / ±1.5 / ±2.0 / ±2.5 |
| Environment and package | |
| Package (mm) | 7.0x5.0 SMD |
